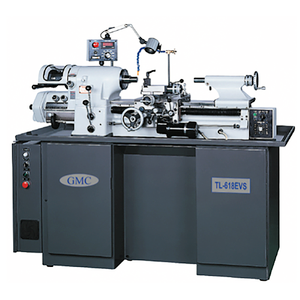

GMC Hardinge Type 6" x 18" Precision Toolroom Lathe - GMC-TL-618EVS
Brand: GMC- SKU:
- GMC-TL-618EVS
- ID:
- 792483
$41,635.00
GMC Hardinge Type 6" x 18" Precision Toolroom Lathe - GMC-TL-618EVS
- ISO 9001 certified
- Spindle run-out within 0.00005” ( 50 millionths inch )
- Turcite-B coating on guideways
- 3HP Yaskawa inverter drive spindle motor
- Infinity Yaskawa inverter drive spindle speeds from 0-4,000 rpm
- Easy to read digital readout on actual spindle rpm speeds
- Electric variable automatic feeding control on carriage and cross slide
- Quick change tool post slide for threading
- Dual range inch/metric quick change gear box for model # GMCTL-618EVS
- Digital control & inverter drive gearbox ( no change gear ) for #GMCTL-618E,
easy cutting threads, variable inch / metric threads range - Automatic thread length control w/ fine adjustable stops for accurate threading
- 36 kinds of inch threads, and 36 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- High precision pre-loaded angular contact bearings for spindle
- Lubrication system for headstock, feed box, ways and leadscrews
- Power 220V, 3 phase ( 220V, 1 phase is optional )
- One year industrial warranty for parts
- Made in Taiwan
Standard Equipment:
- 5C collet closer installed
- Quick change gear box
- 8” drive plate with drive dog
- Dual inch / metric dials
- CARMAR DRO,installed
- Coolant system
- Halogen work light
- Tool box with tools
Spindle Capacity:
- with 3-jaw chuck: 6”
- With expanding collets: 3”
- With round 5C collets: 1-1/16”
- With hexagon 5C collets: 7/8”
- With Square 5C collets: 3/4”
- With step chucks: 1-1/16” to 6”
| Max. swing over bed | 11" |
| Distance between centers | 18" |
| Max. swing over cross slide | 6" |
| Swing over carriage | 9" |
| Swing over carriage | 2.189" |
| Spindle nose ID/OD | 5C / 4 degree taper |
| Spindle thru hole | 1-1/4" |
| Bar stock diameter with 5C closer | 1-1/16" |
| Variable Spindle speeds | 0-4,000 rpm (with 5C), 0-3,000 rpm (with 6” 3-jaw chuck) |
| Cross slide travel | 3" |
| Quick change compound slide travel | 0.1" |
| Inch threads | 11-118 TPI , 36 kinds |
| Metric threads | 0.275-2.7mm, 36 kinds |
| Tailstock quill diameter | 1-3/8" |
| Tailstock quill taper | MT #2 |
| Tailstock quill travel | 3-3/4" |
| Leadscrew length X TPI | 1” / 8TPI |
| Spindle motor ( inverter drive ) | 3HP, 220V, 3 phase |
| DC feeding motor | 110V, 70 W |
| Coolant pump motor | 1/8HP, 220V, 3 phase |
| Overall dimensions, LxWxH | 73” x 30” x 67” |
