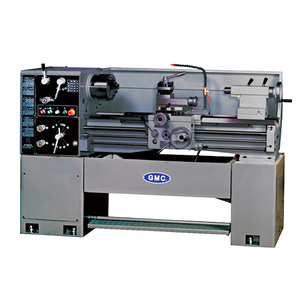

GMC Heavy Duty 14" x 40", Precision Gap Bed Lathe - GML-1640AT
Brand: GMC- SKU:
- GML-1640AT
- ID:
- 792476
$21,835.00
GMC Heavy Duty 14" x 40", Precision Gap Bed Lathe - GML-1640AT
- ISO 9001 certified
- High Tensile cast iron FC25
- Large spindle bore 2-3/16”
- Heavy Duty spindle D1-6
- Heavy Duty guideway width 10"
- Heavy Duty main motor 5HP
- 12 spindle speeds from 50-2,000 rpm
- 32 kinds of inch threads, and 32 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year warranty for parts
- Made in Taiwan
Standard Equipment:
- Free CARMAR DRO installed
- 8" 3-jaw chuck with set reversible jaws
- 14" Face plate
- 1-3/16”-5” steady rest with roller jaws
- 3" follow rest
- 4-position carriage stop
- Removeable gap
- Foot brake
- Coolant system
- LED work light
- Removable gap
- 4-way tools post
- Full length splash guard
- (2) dead centers and (1) reducing sleeve MT6/MT4
- Thread chasing dial
- Tool box and leveling pads
| Max. swing over bed | 14" |
| Max. length of workpiece | 40" |
| Max. swing over cross slide | 9-1/2" |
| Max. swing over gap | 21-3/4" |
| Width of Bed | 10" |
| Effective length in gap to spindle | 8-1/2" |
| Effective length in gap to chuck jaws | 3-1/2" |
| Spindle bore | 2-1/16", D1-6 |
| Taper of spindle center | MT# 6 (MT6/MT4 sleeve) |
| Spindle speeds | 50-2,000 rpm / 12 steps |
| Longitudinal feeds | 0.0017-0.0242 IPR, 32 kinds |
| Cross feeds | 0.00056-0.008 IPR, 32 kinds |
| Inch threads | 56-4 TPI, 32 kinds |
| Metric threads | 0.4-7.0 mm , 32 kinds |
| Module Threads | 0.4-7.0 mm , 32 kinds |
| Diametral pitch threads | 8-120 DP , 32 kinds |
| Max. travel of top slide | 3-9/16" |
| Max. travel of cross slide | 8" |
| Spindle length w/o chuck | 20" |
| Leadscrew length X TPI | 1-1/4" x 4TPI |
| Diameter of tailstock quill | 2" |
| Max. travel of tailstock quill | 4-3/8" |
| Taper of tailstock quill center | M.T. #4 |
| Oil for headstock/ Gear box/Apron | #30 weight machine oil, TEXACO regal R&O/100, 3 Gal. |
| Main Motor | 5HP, 220V/440V 3 phase |
| Amperage draw | 20Amp on 220V, 12Amp on 440V |
| Coolant pump | 1/8HP, 220V/440V 3 phase |
| Overall dimensions, LxWxH | 80” x 38” x 57” |
