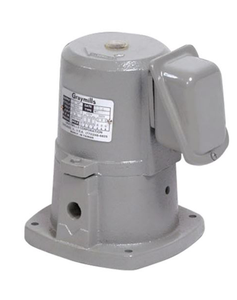

Graymills Centrifugal Coolant Suction Pump, OAL 11-3/4" - IMS100-F
Brand: Graymills- SKU:
- 85-520-075
- ID:
- 282168
| HP | 1 |
$1,295.00
Graymills Centrifugal Coolant Suction Pump, OAL 11-3/4" - IMS100-F
- Dependable, economical replacements for coolant pumps commonly supplied as original equipment on machine tools.
- Suction Pumps (IMS-Style)
- They should not be used to circulate fluids containing fine contaminants.
- Not recommended for applications requiring the circulation of liquids containing large amounts of foreign matter.
- With a maximum 2 ft. suction lift, they may be mounted above liquid level as well as other locations remote from the tank.
Features:
- 3,450 RPM sealed bearing motors.
- 1/8 and 1/4 HP - 1/4" flange mounting holes (diameter) and plastic impeller.
- 1/2, 3/4 and 1 HP - 5/16" flange mounting holes (diameter) and aluminum impeller.
- Pump body and volute are made from cast iron.
- Position of Electrical Connect to Discharge: 90º
- Shaft made from carbon steel.
| Max. Flow Rate | Intake & Discharge | Flange Size | Flange Bolt Circle | Voltage |
| 48 GPM | 1" | 7-7/8" | 8-1/2" | 230/460V, 3 Phase |
For More Graymills Centrifugal Coolant Suction Pumps Click Here
