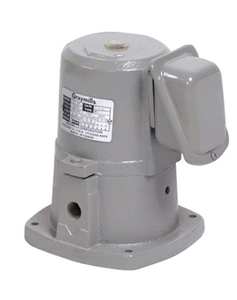

Graymills Centrifugal Coolant Suction Pump, 6-7/8" Pump Length, OAL 6.875" - IMS08-E - 85-520-090
- Dependable, economical replacements for coolant pumps commonly supplied as original equipment on machine tools.
- Suction Pumps (IMS-Style)
- They should not be used to circulate fluids containing fine contaminants.
- Not recommended for applications requiring the circulation of liquids containing large amounts of foreign matter.
- With a maximum 2 ft. suction lift, they may be mounted above liquid level as well as other locations remote from the tank.
Features:
- 3,450 RPM sealed bearing motors.
- 1/8 and 1/4 HP - 1/4" flange mounting holes (diameter) and plastic impeller.
- 1/2, 3/4 and 1 HP - 5/16" flange mounting holes (diameter) and aluminum impeller.
- Pump body and volute are made from cast iron.
- Position of Electrical Connect to Discharge: 90º
- Shaft made from carbon steel.
| Item No. | Max. Flow Rate | Intake & Discharge | Flange Size | Flange Bolt Circle | Voltage |
| 85-520-090 | 9.5 GPM | 3/8" | 5-1/2" | 5-1/2" | 115/230V, 1 Phase |
| 85-520-092 | 20 GPM | 3/4" | 7-1/4" | 7-1/4" | 115/230V, 1 Phase |
| 85-520-094 | 32 GPM | 3/4" | 7-7/8" | 8-1/2" | 115/230V, 1 Phase |
| 85-520-055 | 9.5 GPM | 3/8" | 5-1/2" | 5-1/2" | 230/460V, 3 Phase |
| 85-520-060 | 20 GPM | 3/4" | 7-1/4" | 7-1/4" | 230/460V, 3 Phase |
| 85-520-065 | 32 GPM | 3/4" | 7-7/8" | 8-1/2" | 230/460V, 3 Phase |
| 85-520-070 | 43 GPM | 1" | 7-7/8" | 8-1/2" | 230/460V, 3 Phase |
| 85-520-075 | 48 GPM | 1" | 7-7/8" | 8-1/2" | 230/460V, 3 Phase |
