GS Tooling CAT Tension/Compression Tap Holders
- Quick-change - push back on the holder sleeve and the adapter with tool is removable.
- Press on the end of the adapter nose and the tool is removable - all in a few seconds.
- Smooth stroke - even under full torque load, the tension-compression stroke is full and free.
- Interchangeability - our adapters and holders are interchangeable with Universal-Bilz quick change holders and adapters

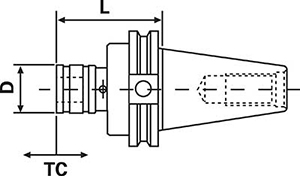

| Item No. | L | D | TC |
| 531-543 | 2.93" | 1.43" | 0.29/0.29" |
| 531-540 | 4.00" | 1.43" | 0.29/0.29" |
| 531-542 | 4.47" | 1.25" | 0.79/0.39" |
| 531-544 | 4.50" | 2.09" | 0.49/0.49" |
| 531-546 | 6.66" | 2.00" | 0.85/0.49" |
| 531-549 | 5.75" | 3.07" | 0.79/0.79" |
| 531-548 | 8.00" | 3.07" | 0.79/0.79" |
| 531-550 | 9.19" | 2.87" | 0.98/0.59" |
| 531-552 | 4.00" | 1.43" | 0.29/0.29" |
| 531-554 | 5.02" | 1.25" | 0.79/0.39" |
| 531-556 | 4.50" | 2.09" | 0.49/0.49" |
| 531-558 | 5.66" | 2.00" | 0.85/0.49" |
| 531-560 | 6.25" | 3.07" | 0.79/0.79" |
| 531-562 | 7.72" | 2.87" | 0.98/0.59" |
