GS Tooling CAT40 Coolant Through Retention Knobs
- Ground Pilot
- 5/8-11 Drawbar Thread
- O-Ring on Pilot to prevent coolant penetration

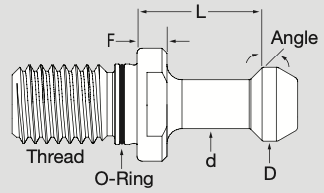

| Item No. | D | d | L | F |
| 366034 | 0.748" | 0.551" | 0.787" | 0.157" |
| 366036 | 0.740" | 0.490" | 0.440" | 0.118" |
| 366038 | 0.740" | 0.490" | 0.440" | 0.118" |
| 366040 | 0.740" | 0.490" | 0.440" | 0.120" |
| 366042 | 0.740" | 0.490" | 0.440" | 0.120" |
| 366048 | 0.748" | 0.551" | 0.792" | 0.275" |
| 366050 | 0.590" | 0.390" | 0.990" | 0.236" |
| 366052 | 0.590" | 0.390" | 0.990" | 0.236" |
| 366056 | 0.748" | 0.551" | 0.792" | 0.275" |
| 366058 | 0.590" | 0.390" | 0.990" | 0.236" |
| 366060 | 0.590" | 0.390" | 0.990" | 0.236" |
| 366062 | 0.590" | 0.390" | 0.990" | 0.236" |
| 366068 | 0.590" | 0.390" | 0.990" | 0.120" |
