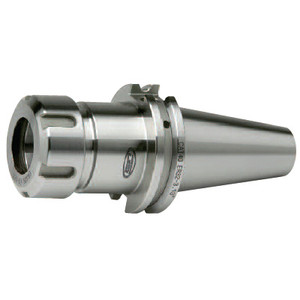

GS Tooling CAT50 ER Collet Chuck, ER16 w/ Hex Nut, 0.019 - 0.413" Collet Range, 4.12" L - 531-432
Brand: GS Tooling- SKU:
- 531-432
- ID:
- 326304
| Collet Series | ER16 w/ Hex Nut |
| Collet Range | 0.019 - 0.413" |
| L | 4.12" |
| L1 | 0.87" |
| D | 1.26" |
| Tightening Torque Nm | 56.9 |
$229.95
GS Tooling CAT50 ER Collet Chuck, ER16 w/ Hex Nut, 0.019 - 0.413" Collet Range, 4.12" L - 531-432
• 100% Forged Construction
• CAT40 certified balanced 30,000 rpm
• Precision Ground Throughout
• DIN Coolant thru the flange - standard
• Threaded through holes for a back-up screw (tool stop) or coolant through when removed
• TIR, 0.0003" at 4xDia.
• Wrench not included
