Harig GRIND-ALL NO. 1 Fixture, 24 Position, V-Block Grinding Fixture & Indexing Spacer 010-100
Brand: Harig Manufacturing Corporation- ID:
- 99023

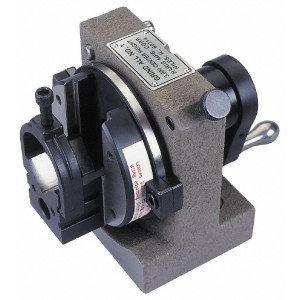

HARIG GRIND-ALL NO. 1 FIXTURE 010-100
24 Position, V-Block Grinding Fixture & Indexing Spacer
3" High Centerline, 1-3/16" Spacer Through Hole, 7-9/32" OAL, 5-7/16" Overall Height
Features:
- Made in U.S.A.
- Ideal for grinding various shaped punches and for convenient use in inspection, light milling, jig-boring, jig-grinding, radius dressing and machining electrodes.
- One-piece, hardened steel body.
- Ball and race integral preloaded bearing for high concentricity and minimum deflection.
- Dial graduated 360° in 1° increments.
- 24 division index plate for quick indexing every 15° to ± 15 seconds non-cumulative.
- Extra precise angular settings with the sine system, using adjustable stop and pin provided.
- V-Block adjusting screw for easy positioning to ±.0001".
- Single screw locks V-Block in place without deflection.
Specifications:
| Spacer Type | V-Block Fixture |
| Includes Chuck | No |
| Number Of Indexing Increments | 24 |
| Centerline Height (Decimal Inch) | 3.0000 |
| Chuck Through Hole Size (Decimal Inch) | 1.1900 |
| V-Block Capacity (Fractional Inch) | 1-1/4 |
| Spacer Through Hole Size (Fractional Inch) | 1-3/16 |
| Masking Plate Divisions | 24 |
| Indexing Accuracy | ±10 s |
| Squareness - Base to Chuck (Decimal Inch) | 0.0001 |
| Parallelism Over Face (Decimal Inch) | 0.0001 |
| Overall Length (Inch) | 7-9/32 |
| Overall Width (Decimal Inch - 4 Decimals) | 4.0000 |
| Overall Width (Inch) | 4 |
| Overall Height (Inch) | 5-7/16 |
| V-angle | 360 |
| UNSPSC Code | 23153000 |
