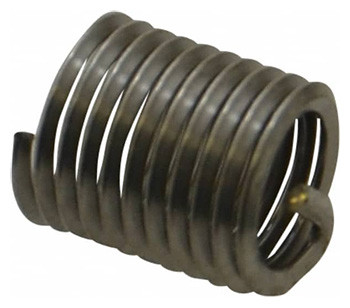

HeliCoil Screw Thread Insert A1084-8CN160, M8x1.25 Metric Thread, 16mm Length - 61-873-6
Brand: HeliCoil- SKU:
- 61-873-6
- ID:
- 86426
| Model | A1084-8CN160 |
| Thread Size | M8x1.25 |
| Insert Length | 16 mm |
| No. of Free Coils | 10-1/4 |
$1.70
HeliCoil Screw Thread Insert A1084-8CN160
M8x1.25 Metric Thread, 16mm Length
Free Running Helical Insert
10-1/4 Free Coils, Tanged, 304 Stainless Steel, Bright Finish, 2D Insert Length
Minimum Order Quantity=10
Please order in multiples of 10
Features:
- Use for O.E.M. applications, or in repairs.
- Provides 60° internal screw threads.
- ISO 9001 Certified.
- Precision formed screw thread coils of 18-8 (Type 302/304) stainless steel wire having a diamond shaped cross-section.
- Cold rolled from round wire. Tensile strength of approx. 200,000 to 250,000 P.S.I. a hardness of 43-50 RC.
- Surface finish is 8-16 microinches. This wire is then wound into a spiral coil which, when installed into Heli-Coil tapped holes, provides permanent conventional 60° Internal Screw threads.
- The assembled insert accommodates any standard bolt or screw to MIL-S-7742 and MIL-S-8879 (UNJ controlled radius root) male threaded member.
- Inserts sold individually.
Specifications:
| Manufacturer Part # | A1084-8CN160 |
| Thread Size | M8x1.25 |
| Overall Insert Length (mm) | 16.00 |
| Overall Insert Length (Decimal Inch) | 0.6299 |
| Tang | Tanged |
| Thread Standard | Metric Coarse |
| Material | Stainless Steel |
| Number of Free Coils | 10-1/4 |
| Length to Diameter Ratio | 2D |
| Finish/Coating | Bright |
| Material Grade | 304 |
