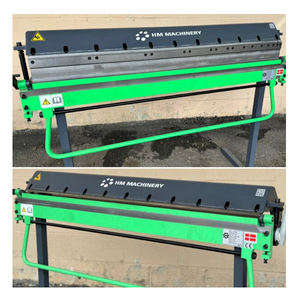

HM Machinery Combo Brake - 13002N1
The HM Machinery 13002n1 Combo Brake is the perfect way to get maximum versatility in a manual brake. This combo package includes 2 different interchangeable tooling sections that can be easily swapped:
Low Beam Straight Nose Bar for straight bends up to 135 degrees
Segmented Tall Nose Bar for box and pan and other complex bends
Specifications:
- Maximum Bend Length: 53”
- Maximum Material Capacity: 20-Gauge Mild Steel
- Maximum Opening (straight tooling): 1.5”
- Maximum Box/Pan Height (segmented tooling): 2.75”
- Maximum Folding Angle: 135 Degrees (straight tooling), 95 Degrees (segmented tooling)
- Approx. Shipping Dimensions: 60” x 20” x 42”
- Approx. Shipping Weight: 275lbs.
