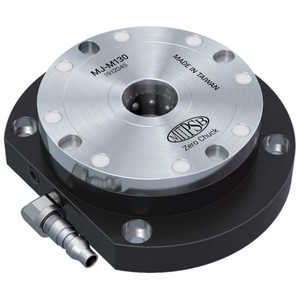

Hold Everything 1-Way Zero Point Clamp Station FJ-AB01 - Type 130 Chuck - 1S45CM130

Hold Everything 1-Way Zero Point Clamp Station FJ-AB01 - Type 130 Chuck - 1S45CM130

Features:

• Quick-Change Work Fixturing - Type 130 Chuck
• Spring-Loaded System
• Pneumatically Opening

Technical Data:

• Dimensions: Ø 173mm x 52mm
• Material: Chuck: 440C Stainless Steel
• Base: 1045 with Black Oxide
• Pull-Down Force: 2.5 kN (No Air)
• Pull-Down Force: 6 kN (With Air)
• Unlocking Force: 42 kN
• Air Connection: QTY: 3 - Ø 8mm (5/16")
• Actuation Pressure: 6 bar (87 psi) Minimum
• Repeat Accuracy: < 0.005mm (0.0002")
• Weight: 4 kg (8.8 lbs)

What's Included:

• QTY 1 - Type 130 Chuck Installed on Base
• QTY 1 - Rotary Hand Valve (4 Way / 3 Position)
• Zero Point System Instruction Manual
