Hold Everything Zero Point Chucks

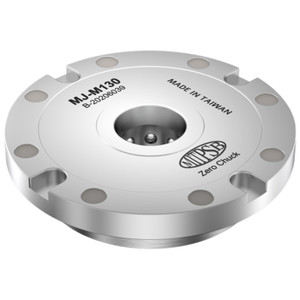

| Type | MJ-M130 | MJ-M100 | MJ-M65 |
| Product Features |
|
|
|
| Technical Data | Dimensions: Ø 130mm x 30mm Material: 440C Stainless Steel Pull-Down Force: 2.5 kN (No Air) Pull-Down Force: 6 kN (With Air) Unlocking Force: 42 kN Actuation Pressure: 6 bar (87 psi) Minimum Repeat Accuracy: < 0.005mm (0.0002") Weight: 2 kg (4.4 lbs) |
Dimensions: Ø 100mm x 30mm Material: 440C Stainless Steel Pull-Down Force: 2.5 kN (No Air) Pull-Down Force: 6 kN (With Air) Unlocking Force: 42 kN Actuation Pressure: 6 bar (87 psi) Minimum Repeat Accuracy: < 0.005mm (0.0002") Weight: 1.5 kg (3.3 lbs) |
Dimensions: Ø 65mm x 22mm Material: 440C Stainless Steel Pull-Down Force: 2 kN (No Air) Pull-Down Force: 2.5 kN (With Air) Unlocking Force: 6 kN Actuation Pressure: 6 bar (87 psi) Minimum Repeat Accuracy: < 0.005mm (0.0002") Weight: 0.5 kg (1.1 lbs) |
| What's Included | Single Chuck Only Zero Point System Instruction Manual |
Single Chuck Only Zero Point System Instruction Manual |
Single Chuck Only Zero Point System Instruction Manual |
Specifications:
| Type | MJ-M130 | MJ-M100 | MJ-M65 |
| Dimensions | Ø 130mm x 30mm | Ø 100mm x 30mm | Ø 65mm x 22mm |
| Air Pressure clamping force (kgf) | 600 | 600 | 250 |
| Spring force (kgf) | 250 | 250 | 100 |
| Unlocking force (kgf) | 4276 | 4276 | 581 |
| Weight (kg) | 2 | 1.5 | 0.5 |
| Repeat Accuracy (mm) | <0.005mm | <0.005mm | <0.005mm |
| Min. Air Pressure (bar) | 6 | 6 | 6 |
| Material | SUS440C | SUS440C | SUS440C |
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity |
|---|---|---|---|
| MJ-M130 | Zero Point Chuck - Type 130, 130mm x 30mm | $ 695.95 | |
| MJ-M100 | Zero Point Chuck - Type 100, 100mm x 30mm | $ 619.95 | |
| MJ-M65 | Zero Point Chuck - Type 65, 65mm x 22mm | $ 540.95 |
