Insize High Precision Non-Rotating Spindle Digital Micrometer, 3.94-5.12"/100-130mm Range - 3661-130
Brand: Insize- SKU:
- 3661-130
- ID:
- 875764
| Accuracy Stroke < 1 Inch | ±.00015" |
| Accuracy Stroke > 1 Inch | ±.00020" |
$2,875.95
Insize High Precision Non-Rotating Spindle Digital Micrometer, 3.94-5.12"/100-130mm Range - 3661-130
- Resolution: 0.01mm/0.0005″, 0.001mm/0.00005″, 0.0005mm/0.00002″
- Repeatability: 0.5um
- Measuring force: 5-10N
- Flatness of measuring faces: 0.3um
- Parallelism of measuring faces: 0.5um
- IP65 Waterproof
- Ratchet stop
- Non-rotating spindle, suitable for cylinders
- Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed
- Carbide measuring faces
- Data output
- Button function: mm/inch, max./min. value tracking, preset value, hold, on/off, zero
- CR2032 battery
- Automatic power off, turn the sleeve to turn on

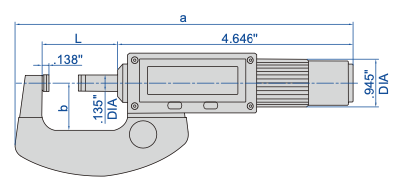

| L | a | b |
| 5.433" | 11.38" | 2.756" |
For More Insize High Precision Non-Rotating Spindle Digital Micrometers Click Here
