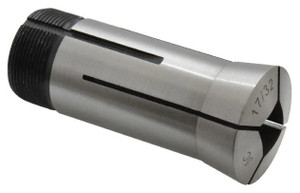

Interstate 5C Square Collet, 17/32" - 35-706-1

Brand:   Interstate
SKU:
35-706-1
ID:
140797
callling
$45.86
Current Stock:
Adding to cart… The item has been added

Interstate

Interstate 5C Square Collet, 17/32"

  • Square collets are used for holding square shape workpieces
  • Within 0.005" TIR 1" from face
  • Inside thread 1.041 x 24 R.H.
  • Outside thread 1.240 x 20 R.H.


Specifications:

Type Square
Size (Inch) 17/32
Size (Decimal Inch) 0.5313
Overall Length (mm) 83.30
Overall Length (Decimal Inch) 3.28
Internal Thread Size 1.041-24
External Thread Size 1.242-20
Material Steel
TIR (Decimal Inch) 0.003940
PSC Code 5136



See all Interstate 5C Hex & Square Collets
