Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 1-1/2" Diameter, 1/4" Face Width, 2-1/4" OAL - 43-035-5
Brand: Interstate- SKU:
- 43-035-5
- ID:
- 97249
| Material | HSS |
| Diameter | 1-1/2" |
| Face Width | 1/4" |
| OAL | 2-1/4" |
| Old STD | 24 |
| American STD | 812 |
$43.68

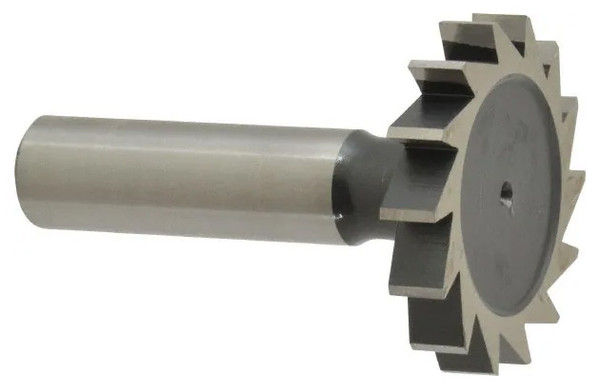

Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 1-1/2" Diameter, 1/4" Face Width, 2-1/4" OAL
High Speed Steel, 16 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-1/4" OAL x 1/2" Shank, Straight Teeth, ANSI 812, Old Standard 24
Features:
- 1/2" straight shank
- Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
- High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Specifications:
| Connection Type | Shank |
| Old Standard Number | 24 |
| American Standard Number (ANSI) | 812 |
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Width (Inch) | 1/4 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Tooth Configuration | Straight |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2-1/4 |
| Number of Teeth | 16 |
