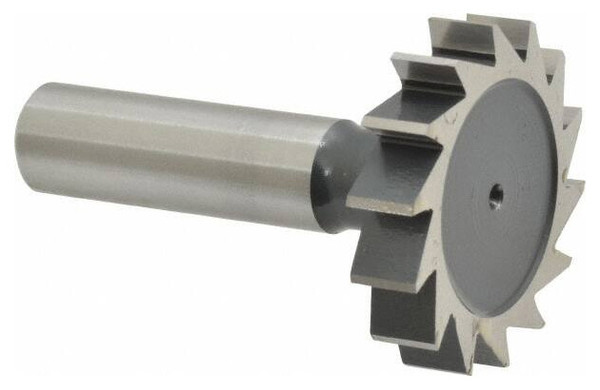

Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 1-1/2" Diameter, 5/16" Face Width, 2-5/16" OAL - 43-036-3Brand: Interstate
Interstate Straight Tooth Woodruff Key Seat Cutter, HSS, 1-1/2" Diameter, 5/16" Face Width, 2-5/16" OAL
High Speed Steel, 16 Teeth, Shank Connection Woodruff Keyseat Cutter
Uncoated, 2-5/16" OAL x 1/2" Shank, Straight Teeth, ANSI 1012, Old Standard 25
- 1/2" straight shank
- Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
- High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
|Old Standard Number||25|
|American Standard Number (ANSI)||1012|
|Cutting Diameter (Inch)||1-1/2|
|Cutting Diameter (Decimal Inch)||1.5000|
|Cutting Width (Inch)||5/16|
|Cutting Width (Decimal Inch)||0.3125|
|Material||High Speed Steel|
|Shank Diameter (Inch)||1/2|
|Overall Length (Inch)||2-5/16|
|Number of Teeth||16|
