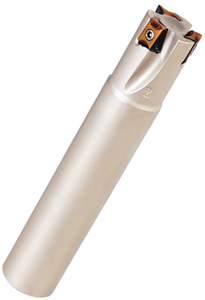

Iscar 90º Indexable End Mill, Designation T490 ELN D1.50-3-W1.25-13
Brand: Iscar- SKU:
- 19-215-109
- ID:
- 371151
$785.95
Iscar 90º Indexable End Mill, Designation T490 ELN D1.50-3-W1.25-13
- Face Milling, Slotting, & Shouldering.
- For shouldering and contouring
- Holes for internal coolant supply
- Suitable for all kinds of materials
- Recommended for rough milling deep shoulders
- Shank Type: Weldon
- Right Hand.
- Insert with chip splitting groove, for reduction of vibration and cutting forces
- Approach Angle: 90º
- Maximum Depth of Cut ap: 0.490"
- Use Insert: T490 LNMT1306
- Use Torx Screw: SR 10502813-HG-M
- Use Torx Wrench: T-07

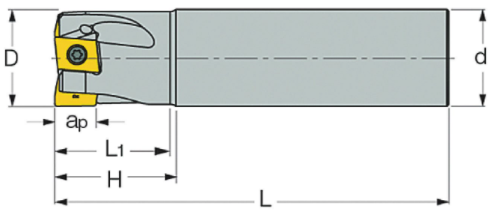

| Cutting Dia. D | Shank Dia. d | Length L | Head Length L1 | Inserts |
| 1.500" | 1.250" | 4500" | 1.660" | 3 |
For More Iscar T490 90º Indexable End Mills Click Here
