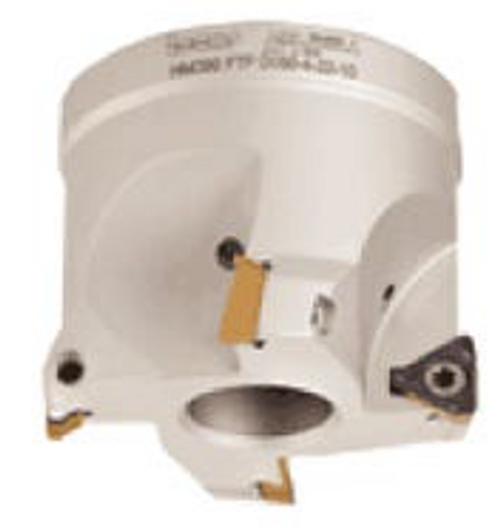

Iscar 90º Indexable Face Mill for TDKT1505 Inserts, 1.5" Cutter Diameter, 1.380" Overall Height - HM390 FTD D1.50-4-.50-15

Brand:   Iscar
SKU:
19-167-845
ID:
371115
Socket Head UNF 1/4-1
Travers Catalog Items yes
callling
$776.95
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar 90º Indexable Face Mill for TDKT1505 Inserts, 1.5" Cutter Diameter, 1.380" Overall Height - HM390 FTD D1.50-4-.50-15

  • Triangular insert with 3 cutting edges
  • Face Milling, Slotting, Shouldering, Ramping, & Helical Milling (Circular Interpolation).
  • Series: HELIIQMILL 390
  • Economical high positive 90° shoulder
  • Ramping down ability
  • High axial rake angles
  • Very strong and durable cutter
  • Sharp clamping angle for higher clamping rigidity
  • Coarse and fine pitch cutters
  • For roughing and semi-finishing applications
  • Coolant holes for each insert
  • Right Hand
  • Shank Type: WELDON
  • Use Torx Screw: SR 10511869
  • Use Torx Wrench: T-20
Arbor Hole Dia. No. of Inserts Max. Depth of Cut Max. Ramp Angle
0.500" 4 0.512" 2°



For More Iscar 90º Indexable Face Mills for TPKT1003 & TDKT1505 Inserts Click Here
