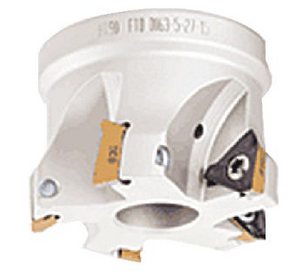

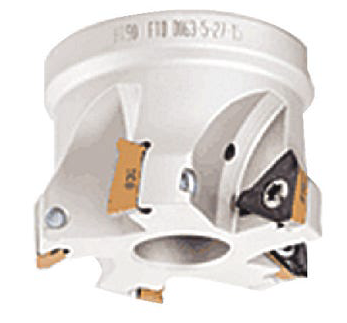

Iscar 90º Indexable Face Mill for TDKT1505 Inserts, 4" Cutter Diameter, 2" Overall Height - HM390 FTD D4.00-6-1.5-15
Brand: Iscar- ID:
- 371119
| Socket Head | - |
$1,498.95
Iscar 90º Indexable Face Mill for TDKT1505 Inserts, 4" Cutter Diameter, 2" Overall Height - HM390 FTD D4.00-6-1.5-15
- Triangular insert with 3 cutting edges
- Face Milling, Slotting, Shouldering, Ramping, & Helical Milling (Circular Interpolation).
- Series: HELIIQMILL 390
- Economical high positive 90° shoulder
- Ramping down ability
- High axial rake angles
- Very strong and durable cutter
- Sharp clamping angle for higher clamping rigidity
- Coarse and fine pitch cutters
- For roughing and semi-finishing applications
- Coolant holes for each insert
- Right Hand
- Shank Type: WELDON
- Use Torx Screw: SR 10505427
- Use Torx Wrench: T-20
| Arbor Hole Dia. | No. of Inserts | Max. Depth of Cut | Max. Ramp Angle |
| 1.5" | 6 | 0.512" | 0.7° |
For More Iscar 90º Indexable Face Mills for TPKT1003 & TDKT1505 Inserts Click Here
