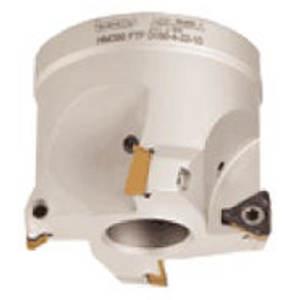

Iscar 90º Indexable Face Mill for TPKT1003 Inserts, 2" Cutter Diameter, 1.570" Overall Height - HM390 FTP D2.00-4-.75-10
Brand: Iscar- ID:
- 371113
| Socket Head | SR UNF 3/8X1 B18.3 |
$920.95
Iscar 90º Indexable Face Mill for TPKT1003 Inserts, 2" Cutter Diameter, 1.570" Overall Height - HM390 FTP D2.00-4-.75-10
- Triangular insert with 3 cutting edges
- Face Milling, Slotting, Shouldering, Ramping, & Helical Milling (Circular Interpolation).
- Series: HELIIQMILL 390
- Economical high positive 90° shoulder
- Ramping down ability
- High axial rake angles
- Very strong and durable cutter
- Sharp clamping angle for higher clamping rigidity
- Coarse and fine pitch cutters
- For roughing and semi-finishing applications
- Coolant holes for each insert
- Right Hand
- Shank Type: WELDON
- Use Torx Screw: SR 14-562/S
- Use Torx Wrench: T-10
| Arbor Hole Dia. | No. of Inserts | Max. Depth of Cut | Max. Ramp Angle |
| 0.750" | 4 | 0.315" | 1.2° |
For More Iscar 90º Indexable Face Mills for TPKT1003 & TDKT1505 Inserts Click Here
