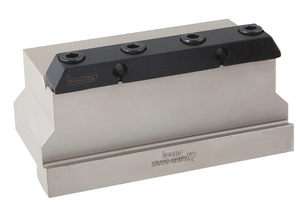

Iscar TGTBU Cut-Off / Parting Blade Blocks

Name: Penn Tool Co.
Address: 1776 Springfield Avenue Maplewood, NJ 07040, USA
Telephone: 800-526-4956
Price range: $$
Rating: 4.8

Brand: Iscar

SKU:

ID:: 668626

callling

Current Stock:

Iscar TGTBU Cut-Off / Parting Blade Blocks

Blocks for TGSU/Flat Top Blades
For Cut/Off - Grooving
Block system for flat top blade systems.
Larger diameters possible with TGTBU system.
Accepts Blade Height: 1.378"
Blade Width: 0.236"
Overall Height: 2.200"
Overall length: 4.331"
Top Clamp: BKU 110
Clamp Screw: SR M6X30DIN912
Extractor Number: HW 5.0
Inserts not included.

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number	Description	Price	Quantity
19-514-122	Iscar Cut-Off / Parting Blade Block TGTBU 19-35, 0.750" Height x 0.750" Width Shank - 2302196	yes	$ 531.95
19-514-123	Iscar Cut-Off / Parting Blade Block TGTBU 25.4-35, 1.000" Height x 1.024" Width Shank - 2302197	yes	$ 556.95
19-514-124	Iscar Cut-Off / Parting Blade Block TGTBU 31.8-35, 1.250" Height x 1.142" Width Shank - 2302241	yes	$ 582.95
19-514-126	Iscar Cut-Off / Parting Blade Block TGTBU 31.1-35, 1.500" Height x 1.535" Width Shank - 2302242	yes	$ 792.95
19-516-001	Iscar Blade Block Top Clamp - BKU 110	yes	$ 83.95
19-516-010	Iscar Block Hex Key Extractor - HW 5.0	yes	$ 2.95
19-516-018	Iscar Clamp Screw SR M6X30DIN912 - 7001844	yes	$ 2.95
