JET 13" x 40" Geared Head Bench Lathes

Model GHB-1340A


JET geared head bench lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

Features:

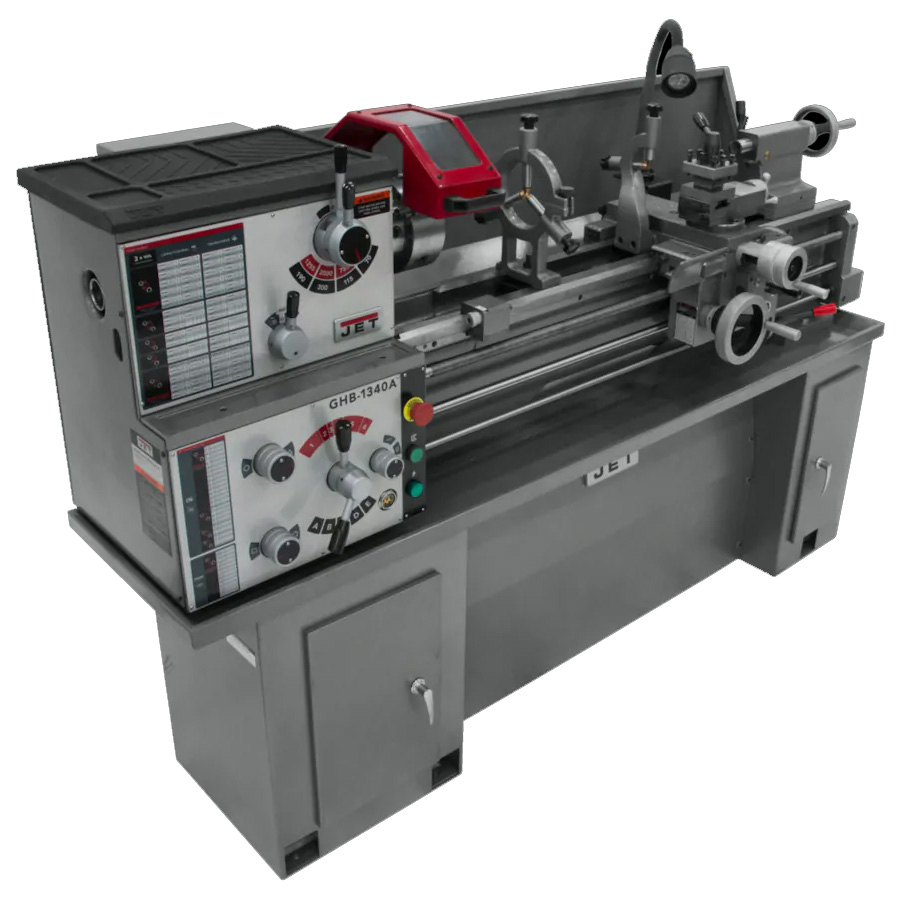

  • Image shown with optional bench, p/n 321443AK
  • Enclosed gearbox design provides smooth, quiet operation
  • Fast, easy speed changes
  • Hardened and ground gears are featured in the headstock and gearbox
  • D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
  • Headstock is constantly oiled during operation
  • Gear box gives wide inch threading and feed capabilities with no gear changes
  • V-way bed design is induction hardened and ground
  • Gap bed section provided for longer diameter work
  • Independent leadscrew and feed rod
  • Spindle actuation control is apron mounted
  • Compound and cross slide have backlash elimination
  • Adjustable gibs are incorporated in the carriage and slideways
  • Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
  • Oil pan included
  • Tolerance test certificate included
  • 6" 3-jaw direct mount chuck with top reversing jaws
  • 8" 4-jaw chuck
  • 12" face plate
  • Steady and follow rest
  • Four-way tool post
  • Metric change gear
  • Splash guard
  • Centers and headstock center sleeve
  • Threading dial
  • Tool box and tools

Specifications:

Item Number 321357A
Model GHB-1340A
Size 13" x 40"
Swing Over Bed 13"
Swing Over Cross Slide 7-25/32"
Swing Through Gap 18-3/4"
Length of Gap 8"
Distance Between Centers 40"
Spindle Bore 1-3/8"
Spindle Mount D1-4
Number of Spindle Speeds 8
Range of Spindle Speeds (RPM) 70 - 2,000
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Longitudinal and Cross Feed Rates 40
Range of Longitudinal Feeds (IPR) .0018 - .0374
Range of Cross Feeds (IPR) .0006 - .0130
Number of Inch Threads 38
Range of Inch Threads (TPI) 3-1/2 - 80
Number of Metric Threads 23
Range of Metric Threads .45 - 10
Max Tool Size 5/8" x 5/8"
Compound Slide Travel 2-11/16"
Cross Slide Travel 6-5/16"
Carriage Travel 35"
Tailstock Spindle Travel 3-3/4"
Taper in Tailstock Spindle MT-3
Follow Rest Capacity 2-3/8"
Steady Rest Capacity 2-3/4"
Width of Bed 7-3/8"
Motor (HP) 2 HP, 230V, 1Ph
Prewired (V.) 230V
Overall Dimensions (L x W x H) 79" x 28-1/2" x 30"
Drive Geared Head
Style (Type) Bench - Geared Head
Weight 1,154 lbs.


View the Operation Manual
