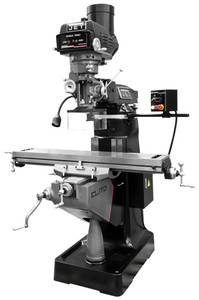

JET Elite 9" x 49" Variable Speed Mill ETM-949 with 3-Axis ACU-RITE MILLPWR G2 CNC - 894041
Brand: Jet- SKU:
- 894041
- ID:
- 351613
| Digital Readout | 3-Axis ACU-RITE MILLPWR G2 |
| Powerfeed | - |
| Power Draw Bar | - |
$72,553.95
JET Elite 9" x 49" Variable Speed Mill ETM-949
with 3-Axis ACU-RITE MILLPWR G2 CNC - 894041
Elite offers World Class Mills fully loaded with features. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. For operator safety all Elite Mills are CSA / CUS Certified and all come with a spindle safety guard.
Features:
- Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012"
- Chromium Molybdenum spindle is fully hardened through a carbonizing treatment and is precisely ground to maintain strict tolerances
- Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
- The Y and Z-Axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements
- Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
- The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
- A patented vari-disc key provides up to ten times the wear resistance than aluminum or brass keys
- Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
- Ball bearing support of the motor shaft ensures proper loading, support and alignment for quiet, accurate operation at any speed
- Hardened and ground table provides a stable and accurate platform for milling a diverse variety of materials
- Every thirty minutes, with a flow of 3 to 6 cc/cy your Elite mill is automatically lubricated
- Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
- Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
- The electronic spindle brake, when activated, interrupts power to the spindle to prevent accidental start ups
- The mounted control box houses major mill functions as well as an emergency stop button
- For added safety, the ETM-949 Mill follows strict guidelines and electrical requirements to be certified by CSA Group
Standard Equipment:
- Spindle Safety Guard
- Halogen Machine Lamp
- Dual Locks On All Surfaces
- Toolbox with Tools
- Tolerance Test Sheet
ACU-RITE MILLPWR G2 CNC Features:
- USB + Ethernet Compatible
- Simplified navigation that eliminates multiple menu screens
- Upgrades available for all legacy MILLPWR models
- 12.1" High Resolution Display with 3D graphics
- 1 GHz Processor
- Available offline software
- Estimated runtime features
- Expanded tool/Datum Offsets
| DRO Mode | MILLPWR G2 |
| External Storage | USB/Ethernet (RS-232) |
| Internal Storage | 2.5 GB Flash (User) |
| Processor | 1 GHz Celeron M |
| Display | 12.1" (1024 x 768) |
| Program Preview | Listed & Graphic |
| Windows Off-Line Programming Station | Yes |
| Filename Filter Search | Yes |
| File Manager Navigation | Tree |
| Estimated Machning Time | Yes |
| Auto Save (Program) | Yes |
| Program Size Limit | 9,999 Steps |
| G Code Program | Extended Support Plus G80 Series Drill Cycles |
| Block Form Solid Model 3D Graphics | w/ User Override |
| Program Step Navigation | Hard Keys & Pop-up Menu |
| Custom Pocket & Islands | Ramp Feed & Optimized Path |
| Circle (Pocket, Frame, Ring, Helix) | Ramp Feed |
| Tool Library | Specify by Tool Number |
| Multiple Datum's (Fixture Offsets) | 99 |
| Graphic View | Line / 3D Shaded |
Mill Specifications:
| Stock Number | 894041 |
| Model | ETM-949 CNC |
| Table Size (L x W) (In.) | 9" x 49" |
| CNC Control | 3-Axis ACU-RITE MILLPWR G2 CNC |
| Spindle Taper (In. x TPI) | R-8 |
| Quill Diameter (In.) | 3-3/8" |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Quill Down Feed Rates (IPR) | 0.0015 - 0.003 - 0.006 |
| Spindle Travel (In.) | 5" |
| Head Movement (Deg.) | 90° R & L 45° F & B |
| Max Distance Spindle to Table (In.) | 18-3/4" |
| Distance Spindle to Column (Max.) (In.) | 21-2/5" |
| Distance Spindle to Column (Min.) (In.) | 6-1/2" |
| Collet Capacity | 1/8" - 7/8" |
| Table Longitudinal Travel (In.) | 35" |
| Table Cross Travel (In.) | 12" |
| T-Slots Number and Size (In.) | 3 and 5/8" |
| T-Slot Centers (In.) | 2-1/2" |
| Work Table Weight Capacity (Lbs.) | 550 lbs. |
| Travel of Knee (In.) | 16" |
| Travel of Ram (In.) | 14" |
| Motor (HP) | 3 HP, 230V, 3 Ph |
| Amperage Draw @ 230V 3Ph | 18 |
| Amperage Draw @ 460V 3Ph | 9 |
| Prewired (V.) | 230V |
| Overall Dimensions (L x W x H) (In.) | 68" x 63" x 84" |
| Weight (Lbs.) | 2200 lbs. |
| Style (Type) | Variable Speed |
