JET JLH-100WO-10, JLH Series 1 Ton Lever Hoist, 10' Lift with Overload Protection - JT9-376201

JET JLH-100WO-10, JLH Series 1 Ton Lever Hoist, 10' Lift with Overload Protection - JT9-376201

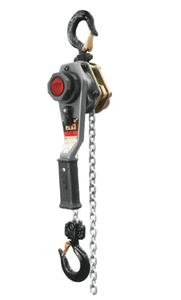

The JET JLH-100WO-10 is a heavy-duty manual lever hoist designed for industrial lifting, pulling, load positioning, and rigging applications. With a rated lifting capacity of 1 ton (2,200 lb) and a 10 ft lift height, this JET lever hoist provides controlled load handling for manufacturing facilities, maintenance departments, fabrication shops, and industrial workshops.

Available from Penn Tool Co, the JET JLH Series lever hoist combines durable steel construction, integrated overload protection, and a mechanical braking system to support demanding material-handling operations.

Key Features
- 1-ton lifting capacity: Rated for loads up to 2,200 lb when operated according to the manufacturer's instructions.
- 10 ft lift height: Provides a 10 ft lifting range for suitable industrial lifting and positioning tasks.
- Overload protection: Integrated slip-clutch protection is designed to help prevent lifting or pulling loads beyond the rated capacity.
- Durable steel construction: Built for demanding industrial working environments.
- Industrial alloy steel hooks: Hooks rotate 360 degrees to assist with rigging and load positioning.
- Weston-style double-pawl brake: Designed to support load control during operation.
- Improved free chaining: Helps operators take up slack chain and position the hoist before loading, following the manufacturer's instructions.
- Ergonomic handle: Designed to improve operator control and comfort.
- Compact manual operation: Suitable for industrial maintenance, fabrication, and material-handling applications.

Industrial Lifting and Material Handling Applications

The JET JLH-100WO-10 manual lever hoist is suitable for applications such as:

- Industrial lifting and lowering
- Load positioning and alignment
- Equipment installation and maintenance
- Manufacturing and fabrication operations
- Industrial rigging and material handling
- Workshop repair and service tasks
- Controlled pulling and tensioning where permitted by the manufacturer

Technical Specifications

• Brand: JET
• Product Series: JLH
• Model: JLH-100WO-10
• Manufacturer Part Number: 376201
• JET Stock Number: JT9-376201
• UPC: 731325473384
• Hoist Type: Manual Lever Hoist
• Rated Lifting Capacity: 1 ton / 2,200 lb
• Lift Height: 10 ft
• Overload Protection: Yes
• Load Chain Dimensions: 5.6 × 15.7 mm
• Headroom: 11-4/5 in
• Lever Pull Force at Rated Load: 79 lb
• Net Product Weight: Approximately 15 lb / 6.80 kg
• Listed Shipping Weight: 16.18 lb / approximately 7.34 kg
• Overall Dimensions: Approximately 14.96 × 5.67 × 4.69 in

What's Included
One JET JLH-100WO-10 1-ton manual lever hoist with a 10 ft lift and overload protection.

Why Choose JET Lever Hoists?
JET lever hoists are designed for industrial lifting and rigging environments where load control, durability, and dependable mechanical operation are important. The JLH-100WO-10 offers a 1-ton rated capacity, 10 ft lift, and integrated overload protection for suitable material-handling tasks.
When choosing a lever hoist, confirm the required capacity, lift height, headroom, rigging arrangement, and compatibility with the intended application.

Safety Information

Operate the hoist only within its rated working load limit and according to the manufacturer's instructions. Inspect the chain, hooks, brake, and other components before use. Never use lifting equipment to lift people or stand beneath a suspended load. Ensure that the supporting structure and rigging are suitable for the intended operation.

Frequently Asked Questions

What is the lifting capacity of the JET JLH-100WO-10 lever hoist?
The JET JLH-100WO-10 has a rated lifting capacity of 1 ton, equivalent to 2,200 lb.

What is the lift height of this JET lever hoist?
This model provides a 10 ft lift height.

Does the JET JLH-100WO-10 have overload protection?
Yes. It features integrated slip-clutch overload protection designed to help prevent lifting or pulling loads beyond the rated capacity. Follow the manufacturer's operating instructions.

What type of load chain does this lever hoist use?
The hoist uses a load chain with listed dimensions of 5.6 × 15.7 mm.

What is the weight of the JET JLH-100WO-10?
The manufacturer's specification sheet lists the net weight as approximately 15 lb, or 6.80 kg. Distributor data lists 16.18 lb, or approximately 7.34 kg, as the shipping or catalog weight.

What is the manufacturer part number for this JET lever hoist?
The manufacturer stock number and part number are 376201.

What is the UPC of the JET JLH-100WO-10?
The UPC is 731325473384.

What applications is the JET JLH-100WO-10 suitable for?
It is designed for suitable industrial lifting, pulling, load positioning, rigging, maintenance, and material-handling applications within the manufacturer's operating limits.

How much force is required to operate this lever hoist at its rated load?
The listed lever pull force at rated capacity is 79 lb.

Where can I buy the JET JLH-100WO-10 lever hoist?
You can find the JET JLH-100WO-10 at Penn Tool Co by searching for its model number or manufacturer part number.
