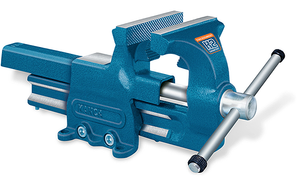

Kanca K2 Plumber's Vises & K2 Metal Swivel Bases
- Material made of impact resistant Ductile iron (high tensile strength).
- High quality Vise made from drop forged steel and surface-hardened for long life.
- The double acme thread screw allows faster adjustment of the jaw opening and is enclosed to keep dirt and debris out of the mechanism.
- Handle rubber ring for safe use
- Precision machined handle
- Forged Steel spindle bearing
- Induction hardened clamping jaws(50-58 HRC)
- Induction hardened and precisely grinded anvil area(50-55 HRC)
- Forged Steel jaw body
- Forged Steel rear body
- Forged Steel solid slides
- Forged Steel movement screw
- Special Hot-rolled U Profile
- Guide adjustable by centrally located screw
- Double-ended screw allows quicker movement
- Specially machined, non-slip jaw design
- Forged Steel pipe clamping jaws
| Item No. | K2-100 | K2-120 | K2-140 | K2-160 | K2-180 |
| Anvil Size | 1" x 1.5" | 1.88" x 1.65" | 2.2" x 2.1" | 2.7" x 2.2" | 2.7" x 2.2" |
| Distance ø | 3.5" | 4" | 5.5" | 5.5" | 5.5" |
| Hole Diameter ø | .35" | .5" | .5" | .55" | .55" |
| Screwhandle ø | .5" | .5" | .6" | .7" | .7" |
| Vise Height | 5" | 6.5" | 7.5" | 9" | 9" |
| Handle Length | 7.4" | 9" | 12.2" | 12.4" | 12.4" |
| Clamps from 2 | 16" | 16" | 18" | 18" | 18" |
| Clamps to 2 | 40" | 58" | 80" | 98" | 98" |

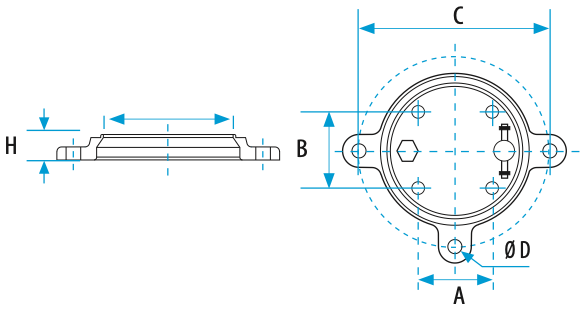

Kanca K2 Plumber's Vise Metal Swivel Bases
- Swivel Base: Drop forged, infinitely variable rotation between 0˚ and 360˚.
- Position lockable by special boltscrew arm.
- Suitable also for other brands.
- Vise not Included.
| Item No. | A | B | C | H |
| K2S-100 | 2" | 2.5" | 6" | 1" |
| K2S-120 | 2.5" | 3.5" | 7" | 1.2" |
| K2S-140 | 3.5" | 4.5" | 8.5" | 1.1" |
| K2S-160 | 4.5" | 5" | 9.5" | 1.5" |
| K2S-180 | 4.5" | 5" | 9.5" | 1.5" |
