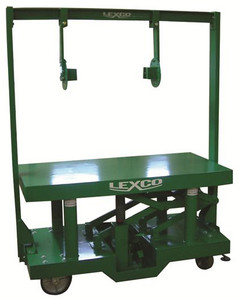

Lexco DH Series Hydraulic Die Handler DH-3339-22, 2000 lbs. Capacity, 30" x 30" Table - 499243
Brand: Lexco- SKU:
- 499243
- ID:
- 100723
| Model | DH-3339-22 |
| Capacity | 2000 lbs. |
| Table W x L | 30" x 30" |
$6,995.00
Lexco DH Series Hydraulic Die Handler DH-3339-22, 2000 lbs. Capacity, 30" x 30" Table - 499243
The DH series hydraulic die handler is a cost effective mobile die cart that allows you to transport, separate, and present your dies for service and maintenance.
Features:
- 1-Year Warranty
- Heavy-duty steel adjustable clamps for gripping the upper die set for separation
- Floor lock
- Precision telescoping guide tubes
- Rigid die hangers standard with indexing clamps
- Rotation of 360º - increments of 45º
Specifications:
| Part Number | 499243 |
| Model | DH-3339-22 |
| Table Width | 30" |
| Table Length | 30" |
| Swivel Caster | (2) 5" steel |
| Rigid Caster | (2) 5" steel |
| Min. Clearance under Bar to Table Top | 19 7/8" |
| Max. Die Width | 24" |
| Max. Die Length | 30" |
| Raised Height | 48" |
| Lowered Height | 30" |
