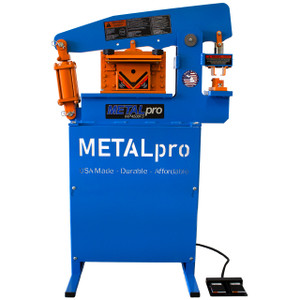

Metalpro 45 Ton Hydraulic Ironworker w/ Foot Switch - MP4500FS

Metalpro 45 Ton Hydraulic Ironworker w/ Foot Switch - MP4500FS

The MP4500FS is a 45-ton ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 45 tons of pressure at the punch station and 22.5 tons of pressure at the central workstation. This allows the user to punch a 7/8" round hole through 1/2" mild steel (capable of larger holes through thinner mild steel). METALpro’s footswitch design controls a hydraulic power system.

This machine comes standard equipped with METALpro's 8 inch, 3 in 1 combination shear. The shear consists of a flat bar shear, angle iron shear and round/square rod shear, built into one singular unit. METALpro stands behind their machines with a three-year limited manufacturing warranty. All METALpro machines and accessories are proudly made in the USA and built to last.

45 TONS OF POWER

The machine is ready with die holder, stripper, and punch retaining nut. The punch station can be used with a range of notchers, custom shape punching, and forming operations. The punch ram and retaining nut are machined and heat treated for long life. Shear handles flat bar, round, square, and angles in one quick set up. All wear parts and blades made from heat treated, high grade tool steel.

The large 11 x 16" power cavity delivers 25 tons at the shear. The outboard punching station delivers 45 tons at the punch and is designed to work with a variety of METALpro accessories:

• Round, square, oblong, and custom shaped punches and dies
• Heavy duty notcher
• Brakes
• Pipe notcher
• Wheel kit

*All METALpro accessories can be used across all METALpro Ironworker models. (MP45PSP on 40 ton models is the only exception)

*ALL METALpro MACHINES ARE RATED FOR MILD STEEL

View the Accessories for Ironworkers

View the Round Punch Tonnage Chart

View the Square Hole Punching Tonnage Chart

View the Oblong Hole Punching Tonnage Chart

View the MP4500FS Operations Manual

APPLICATIONS:

All in one ‘fabrication shop’ with capabilities in:

• Punching
• Forming
• Shearing
• Pressing
• Notching
• Pipe notching
• Bending

BENEFITS:

• The most cost effective 45 ton ironworker on the market
• Made in the Hamilton, MI USA
• Plugs into standard 110V 20 amp outlet or generator
• Lightweight with small footprint
• 3 year warranty
• Simple, reliable and built to last

STANDARD FEATURES:

• Punch capacity of 45 tons
• 3-3/4" throat depth
• 2" die holder, punch retaining nut and stripper
• Power cavity with 3-in-1 8 inch shear
• Guarding complies with ANSI B11-8 standards
• Accessories and custom tooling sold separately

SPECIFICATIONS:
