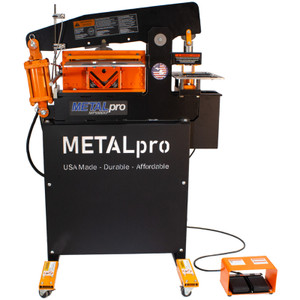

Metalpro 50 Ton Ironworker, 110/120V, 1-Phase - MP5000XP
Brand: Metalpro- SKU:
- MP5000XP
- ID:
- 807927
Metalpro 50 Ton Ironworker, 110/120V, 1-Phase - MP5000XP
The MP5000XP (Xtreme Production) is a 50-ton ironworker that comes fully loaded with power and attachments, built to handle production and high out-put speeds. It is powered by a foot switch controlled 1.5HP Baldor motor, spinning an American engineered 2 stage, high performance gear pump. The motor/pump runs on 110V single phase power producing 24 strokes per minute and allows for users to punch, shear or brake up to 1/2" material. This ironworker comes equipped with 13 attachments (listed below) giving users all the tools needed to hit the ground running. The MP5000XP is loaded with capabilities, and it’s matte black color with orange accents are, sleek, bold and just plain badass.
Quality is not just a promise at METALpro, it's part of our foundation. It is why we make our machines in Hamilton, Michigan and source 100 percent of our components in the USA. We don’t just talk about durability, we mean it, and that’s why we offer an industry leading 3 year warranty.
Attachments Included:
- 1.5HP Baldor Motor with 2 Stage (HI-LO) gear pump 2900PSI
- Dual pedal foot switch with safety cover (8ft length)
- 12 inch 3 in 1 Combination Shear (Flat Bar, Angle Iron, Round Rod, Square Bar)
- 12" Press Brake with 3/16" brake die set
- Brake Back Stop
- Brake Guide Table
- Limit Switch Kit (Stroke Control with micro adjust)
- Punch Station Guide Table
- Shear Guide Table
- Slug Catcher
- Wheel Kit
- Shear back stop
- 8 Piece Punch and Die Set (9/32", 11/32", 13/32", 15/32", 17/32", 21/32", 25/32", 29/32")
*ALL METALpro MACHINES ARE RATED FOR MILD STEEL
Specifications:
| COUNTRY OF ORIGIN | USA |
| CAPACITY | 50 tons |
| WARRANTY | 3 years |
| ATTACHMENTS INCLUDED | -1.5HP Baldor Motor, 2 Stage (HI-LO) gear pump -Dual pedal foot switch with safety cover (8ft length) -12 inch 3 in 1 Combination Shear -12" Press Brake with 3/16" brake die set -Brake Back Stop -Brake Guide Table -Limit Switch Kit (Stroke Control with micro adjust) -Punch Station Guide Table -Shear Guide Table -Slug Catcher -Wheel Kit -Shear back stop -8 Piece Punch and Die Set (9/32", 11/32", 13/32", 15/32", 17/32", 21/32", 25/32", 29/32") |
| SHEAR CAPACITY - FLAT BAR | 1/4" x 12" 3/8" x 8" 1/2" x 6" |
| SHEAR CAPACITY - ANGLE IRON | 1/4" x 4" x 4" |
| SHEAR CAPACITY - ROD | 3/4" |
| SHEAR CAPACITY - SQUARE | 5/8" |
| FORMING CAPACITY | Up to 1/2" Mild Steel |
| FORMING TONNAGE CAPACITY | 28 tons |
| PUNCH CAPACITY | 50 tons |
| POWER | 110/120V Single Phase |
| MOTOR/PUMP | 1.5HP Baldor Motor, 2 stage (HI-LO) Gear Pump |
| STROKES PER MINUTE | 24 |
| HYDRAULIC PRESSURE | 2900PSI |
| GALLONS PER MINUTE | LO-4GPM / HI-1.5 GPM @450PSI |
| THROAT DEPTH | 3-3/4" |
| OPERATING WEIGHT | 900 lbs |
| MACHINE DIMENSIONS | 24" x 36.5" x 59" |
| OSHA/ASNI B11-8 | Approved |
