Motionics Wireless Measurement Read WiMER Series 4A - W4A
Brand: Motionics- SKU:
- W4A
- ID:
- 386245
Motionics Wireless Measurement Read WiMER Series 4A - W4A

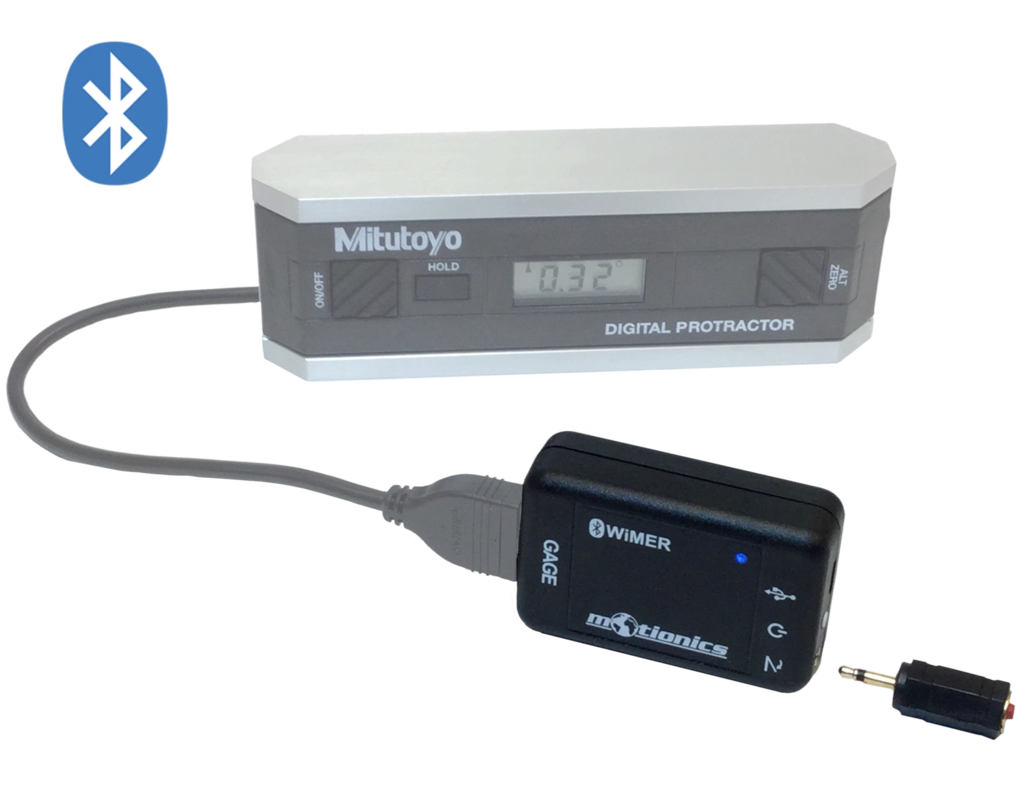

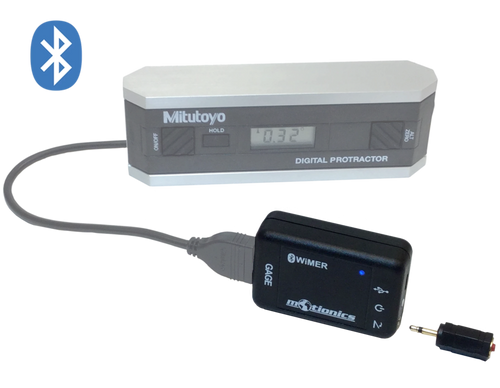

WiMER4A is the wireless transmitter for Mitutoyo digital protractor 950-318. Working together with WiMER4A, 950-318 readings can be wirelessly viewed and collected on iPhone/iPad/Android/Windows PC.
Mitutoyo 950-318 is a gravity electronic sensor based digital protractor. It covers a measurement range of 360° (90°x4) with high resolution (0.01° for 0° to 9.99°, 0.1° for 10° to 90°) and high accuracy (0.05° for 0° to 10°, 0.2° for 10° to 80°, 0.1° for 80° to 90°). It features a machined aluminum frame with an easy-to-read liquid crystal display.
The WiMER4A is available as is, or can be bundled with the Mitutoyo 950-318 digital protractor. You can select either option above. Both options come with a BLE USB dongle for PC use.
Specifications
| Measurement Range | 360° (in software), 90° x 4 (on gage) |
| Resolution | 0.01° (0° to 9.99°), 0.1° (10° to 90°) |
| Accuracy | 0.05° (0° to 10°), 0.2° (10° to 80°), 0.1° (80° to 90°) |
| Wireless Data Rate | 2Hz |
| Transmission Range | 20 m (indoors)/30 m (outdoors) |
| Working Temperature | 0 - 50 °C |
| Dimensions | 2.50 x 1.63 x 0.80 in |
| Rechargeable Battery | 400 mAh |
| Battery Life | 30 hrs |
| Charging | 5 VDC USB |
Software
iOS
There are various engineering apps available and we are working to bring more apps for different applications. Click the app icons below to view more details on the App Store or contact us for more information.
Apple Watch Compatible
- Companion Apple Watch app for MultiGage Reader on iPhone
- View wireless measurement device readings on your wrist.
- Start/stop continuous data recording or capture single reading by tapping on Apple Watch
Android
MultiGage Reader offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.
Windows
With our FREE Windows software, MultiGage, you can also stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.
Included
- WiMER4A Base x1
- Mitutoyo SPC Cable 936937 x1
- Trigger Switch x1
- USB Charging Cable x1
- USB Power Adapter x1
- BLE Dongle (*Required for PC use)
- 1-Year Limited Warranty
- Mitutoyo 950-318 (Optional)
- 3-Year Extended Warranty (Optional)
Click to download the Brochure.
Click to download the User Manual.
For use with PRO3600 Levels:
- SmartTool Digital Level Protractor Inclinator PRO3600
- Mitutoyo Digital Protractor Level Pro 3600
- Pro-Tronic Digital Level Protractor Inclinometer PRO 3600
- Aero Angle II Pro 3600 Digital Protractor Level and Inclinometer - KS6005
- SPI TRONIC PRO 3600 Digital Level Protractor Inclinometer, With 0.01° Resolution - 31-040-9
