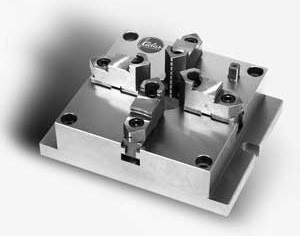

PBA Super Thin Low Profile Square Chuck - MCA12

Brand: PBA Pratt Burnerd America

SKU:: MCA12

ID:: 310343

callling

$3,095.00

Current Stock:

Adding to cart… The item has been added

PBA Super Thin Low Profile Square Chuck - MCA12

Features:

Universal scroll chuck design
End-surface clamping design enables fast efficient mounting of several chucks to a worktable
Super thin design allows greater Z-axis machining
Elongated slots allows fast and easy positioning on worktable, simply use standard T-bolts, versus mounting connecting plates required by conventional chucks
Milled key-slots on the base plate allows accurate quick changing of the chucks
Ideal for pallet applications, Standard Mills, Vertical Machining Centers, Angle Plates, Tombstones, and Grinding Machines
American Standard, hard top and master jaws
One year warranty

Specifications:

Super Thin Low Profile Square Chucks		Gripping Capacity
Model	Approx Weight	External		Internal
		Min.	Max.	Min.	Max.
MCA12	125 lbs	.39 "	10.43"	3.54 "	10.43"

Dimensional Data (in inches)

Model	MCA12
A	14.96
B	3.35
C	0.98
D	10.24
E	3.94
F	0.27
G	4-M16 x2P
H	4.64
J	1.57
K	2.2
L	.905*
M	10.79
N	12.2
P	10.79
Q	12.2
R	5.31
S	0.87

* Square Drive

See all PBA Super Thin Low Profile Square Chucks, Series MCA
