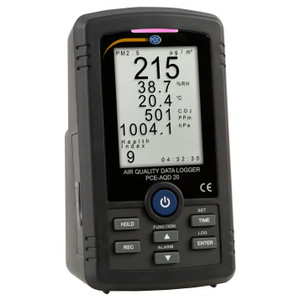

PCE Instruments Air Quality Meter, Data Logger for CO2 / Temperature / Humidity / PM2.5 / Air Pressure - PCE-AQD-20
Brand: PCE Instruments- SKU:
- PCE-AQD-20
- ID:
- 916942
PCE Instruments Air Quality Meter, Data Logger for CO2 / Temperature / Humidity / PM2.5 / Air Pressure - PCE-AQD-20
Air Quality Meter - Air quality data logger for 5 parameters / Measures temperature, humidity, CO2, PM2.5 and air pressure / SD storage / XLS format / Large LCD / Power adapter and battery operation
The air quality meter is an ideal measuring device for monitoring the air quality at workplaces. The air quality meter is ideal for continuous logging of air temperature, humidity, CO2, PM2.5 and air pressure. All these parameters give the occupational safety expert information about the air quality. The measured values are stored by the air quality meter on an SD memory card.
The format is XLS, so the measured values can be read directly into Excel, without having to be incorporated into a new software. The measured values are displayed on the large, illuminated display. The air quality meter is operated by batteries or 9 V power supply unit. As a special feature, this air quality meteris equipped with an alarm function. This offers the possibility to inform the user about an exceeding of temperature, air humidity or dust load. In addition to the measured values, the air quality meter also informs about the current time.
Features:
- 5 measuring functions
- Excel data logger on SD card
- Large display
- Battery and power adapter operation
- Ideal for workplace monitoring
- Alarm function
View the PCE-AQD-20 User Manual
Specifications:
| Measurement function PM2.5 | |
| Measuring range | 0 ... 250 μm / m³ |
| Resolution | 1 μm / m³ |
| Accuracy | ± (10% of rdg. + 15 μm) |
| Measuring function humidity | |
| Measuring range | 5 ... 95% rh |
| Resolution | 0.1% RH |
| Accuracy | > 70% RH: ± (3% of the prev + 1% RH) <70% RH: ± 3% RH |
| Measuring function temperature | |
| Measuring range | 0 ... 50°C / 32 ... 122°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ± 0.8°C / 1.44°F |
| Measurement function CO2 | |
| Measuring range | 0 ... 10,000 ppm |
| Resolution | 1 ppm |
| Accuracy | < 1000 ppm: ± 40 ppm < 3000 ppm: ± (50 ppm + 3% of rdg.) > 3000 ppm: ± (50 ppm + 5% of rdg.) |
| Measuring function air pressure | |
| Measuring range | 10 ... 1100 hPa |
| Resolution | 0.1 hPa |
| Accuracy | ± 1.5 hPa |
| Display | LCD display with backlight |
| Storage | SD card max. 32 GB |
| Storage rate | 2 ... 3,600 s |
| Memory error | < 0.1% of the completely stored data |
| Display | Hold, Max, Min |
| Measuring rate | About 1 s |
| Interface | Serial for live visualization on computers (Data cable SOFT-LUT-USB sold separately) |
| Alarm output | OC output 24V / 70-mA DC |
| Power supply | 6 x 1.5V AA battery 9V / 1 A power adapter |
| Current consumption | 230-mA without lighting approx. 250-mA with lighting |
| Operating conditions | 0 ... 50°C / 32 ... 122°F, max. 80% rh |
| Weight | About 387 g / < 1 lb |
| Dimensions | 164 x 93 x 72 mm / 6.5 x 3.7 x 2.8 in |
Delivery Scope:
- 1 x Air Quality Meter PCE-AQD 20
- 1 x Mains power adapter 9 V / 1 A
- 1 x Instruction manual
