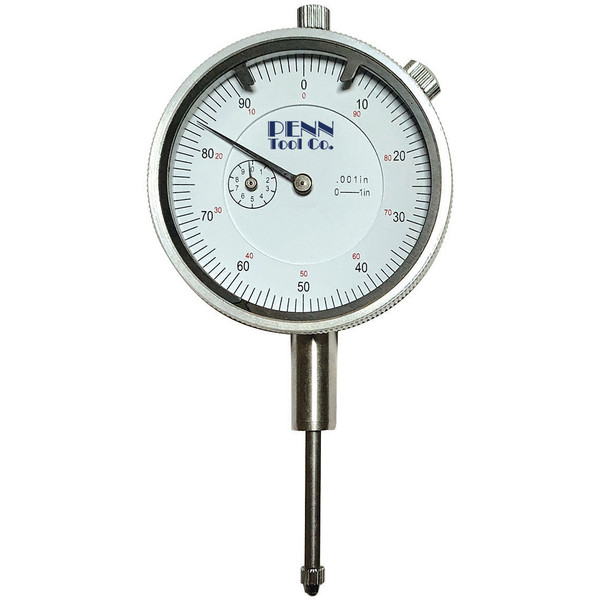

Penn Tool Premium Dial Indicator, 0-1" - PTC-001
Brand: Penn Tool Co.- SKU:
- PTC-001
- ID:
- 679087
Penn Tool Premium Dial Indicator 0-1" Range - PTC-001
The Penn Tool Premium Dial Indicator PTC-001 is a precision measuring instrument designed for machine setup, inspection, alignment, runout checking, and general shop measurement. Featuring a 0-1" measuring range with 0.001" graduations, this indicator provides the accuracy required for machining and quality control applications.
Built with a durable hard chrome finish and a standard lug back configuration, the PTC-001 is compatible with most indicator holders, magnetic bases, and inspection fixtures. The high-contrast white dial face provides easy readability while the 3/8" stem allows quick mounting in standard setups.
Key Features
- 0-1" measuring range
- 0.001" graduation increments
- High-visibility white dial face
- Hard chrome finish for durability
- Standard size lug back mounting
- 3/8" diameter stem
- #4-48 contact point thread
- Meets or exceeds Federal specifications
- Suitable for machining, inspection, and setup work
Applications
- Machine setup and alignment
- Runout inspection
- Quality control measurements
- Toolroom inspection
- Lathe and milling machine setup
- Fixture alignment
- Precision manufacturing
- Maintenance and troubleshooting
Specifications
| Specification | Value |
|---|---|
| Brand | Penn Tool Co. |
| SKU | PTC-001 |
| Measuring Range | 0-1" |
| Graduation | 0.001" |
| Face Color | White |
| Stem Diameter | 3/8" |
| Thread Size | #4-48 |
| Finish | Hard Chrome |
| Mounting Style | Standard Lug Back |
| Compliance | Meets or Exceeds Federal Specifications |
Frequently Asked Questions
Q. What is the Penn Tool PTC-001 Dial Indicator used for?
A. The PTC-001 Dial Indicator is designed for precision measurement tasks such as checking runout, alignment, concentricity, flatness, and dimensional variations during machining, inspection, and machine setup.
Q. What is the measuring range of the PTC-001 Dial Indicator?
A. The indicator features a measuring range of 0 to 1 inch, making it suitable for a wide variety of precision measurement and inspection applications.
Q. Can this dial indicator be used with a magnetic base?
A. Yes. The PTC-001 can be mounted on most standard magnetic bases and indicator holders, allowing for stable, hands-free measurements during setup and inspection tasks.
Q. Is the PTC-001 suitable for lathe and milling machine setup?
A. Yes. Machinists commonly use dial indicators for lathe chuck alignment, spindle runout checks, tailstock alignment, vise alignment, and milling machine tramming operations.
Q. Can this dial indicator be used to measure runout?
A. Yes. The PTC-001 is ideal for measuring runout on shafts, spindles, chucks, bearings, and rotating components, helping improve machining accuracy and quality control.
