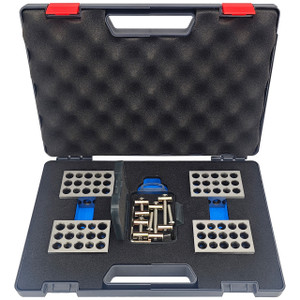

2-4-6 Blocks and Attachment Hardware Kit

*Can be used as 4-6-8 blocks, cheaper and lighter

Hardened steel precision all six sides to ±.0001" squareness per inch. The 5/8" through holes are arranged for mounting and conversion into angle plates and various other inspection or production set-ups. Weight: 37 lbs.

Using the hardware allows two blocks to be attached to each other in literally every possible configuration.

2 -4- 6 Blocks Attachment Hardware Kit

The 2-4-6 Block Attachment Hardware Kits addresses the above bolting limitations. This hardware allows joining blocks together with all hardware buried within the blocks. The hardware is also slightly smaller than the holes allowing edges and faces to be joined together with faces being flush with each other.

To use, insert a through hole dowel into a block hole and thread a screw through the hole.

Next, insert a threaded dowel with the M4 threaded knob into a hole in another block and screw and tighten the screw into this nut to secure two blocks together.

Each dowel has a straight screwdriver slot in line with the hole to assist in getting the dowels perfectly lined up to accept the bolts. A M4 thread knob can be inserted in the thread dowel to help in getting the dowels lined up to accept screws.

Hardware kit includes:

• 4 PCS 12mm dowels
• 4 PCS M8 threaded 12mm dowels
• 4 PCS M8 110mm Allen screws
• 4 PCS M8 60mm Allen screws
• 1 PCS Hex key
• 1 PCS M4 threaded knob
