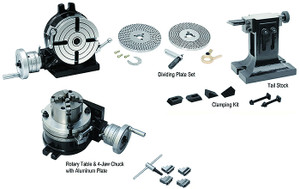

Precise 8" Rotary Table Tailstock Dividing Plates Lathe Chuck & Clamping Kit - 3906-2318

Precise 8" Rotary Table Tailstock Dividing Plates Lathe Chuck & Clamping Kit - 3906-2318

• Rotary table is precision ground with a low profile design.
• It's worm gear is easily disengaged for free rotation and the one piece worm and shaft are hobbed from solid alloy steel.
• The included rotary table can be used in a horizontal or vertical position and with the included lathe chuck.
• The rotary table parts are strategically positioned for easy access and it has a 10 second vernier reading.
• One rotation of the rotary table handle equals 4° on collar and it is graduated 360 degrees.
• Also included is a set of dividing plates suitable for the rotary table.
• This set includes index plates, a crank handle, 3 screws, a sector & a U washer.
  Index plates a and b are as follows: Plate A - 26, 30, 34, 38, 41, 44, 47, 51, 57, 28, 32, 37, 39, 43, 46, 49, 53, 59 & Plate B - 62, 67, 71, 77, 81, 87, 91, 97, 63, 69, 73, 83, 89, 93, 99.
• The 5" 4-Jaw self-centering lathe chuck is a universal scroll chuck made of high grade tool steel.
• A chuck wrench, aluminum plate, 2 sets of solid jaws, both ID and OD, are included.
• The 10 piece clamping kit parts are made of drop forged steel and the parts are case hardened and heat treated.
• The clamping kit includes 2 each of Step Clamps, Step Blocks, Studs, T-slot Nuts & Flanged Nuts.
