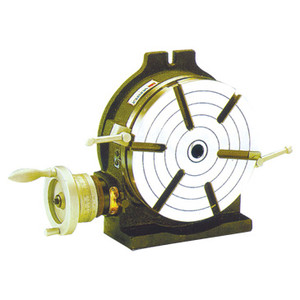

Precise Horizontal/Vertical Rotary Table, 8" Diameter, Made in Taiwan - JJ55-LG8

Precise Horizontal/Vertical Rotary Table, 8" Diameter, Made in Taiwan - JJ55-LG8

• Works as an index center in the vertical position as well as a conventional rotary table for circular cutting, angle setting, boring and spot facing
• 10-Second Vernier reading
• Disengageable worm gear permits rapid rotation. Worm gear is hardened and ground.
• Optional dividing plates and crank handle can be attached to the rotary table drive mechanism. One rotation of handle equals 4"
• The table is made of Meehanite. The base of the body, table surface and rotating parts are ground finished, permitting very smooth rotation.

Weight 66 lbs

Diameter 8"

Horizontal Height 4.100"

Vertical Height 10.400"

Center Height 5.300"

Center Hole 3MT

Number of T-Slots 3

See all Precise Horizontal/Vertical Rotary Tables, Made in Taiwan
