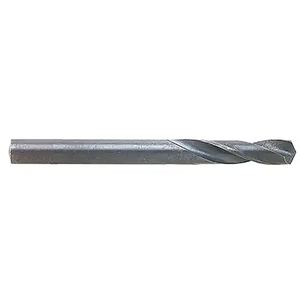

Precise Metric H.S.S. Screw Machine Length Stub Drills - Sizes 3mm to 7.60mm

Brand: Precise

SKU:

ID:: 759011

callling

Current Stock:

Precise Metric H.S.S. Screw Machine Length Stub Drills - Sizes 3mm to 7.60mm

H.S.S. - High Speed Steel
Hardness: 58 to 60 RC
Primarily designed for machining operations in screw machines.
Short length offers increased rigidity for machine drilling of steel, cast steel, cast iron, or non-ferrous and non-metallic materials.
Use with hand held manual drills and either portable or stationary machines.
Standard two flute design.
Standard spiral, helical flutes.
Precision ground flutes.
Cylindrically ground.
118° point angle and standard web thickness.
Steam tempered.
Black or bright finish depending upon our stock.
Workpiece Material Range: Steel, Cast Iron, Plastics

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number	Description	Price	Quantity
01-076-040	Precise Metric H.S.S. Screw Machine Length Twist Drill, 3.00mm Size, 0.1181 Decimal Size, 16mm Flute Length, 46mm Overall Length	yes	$ 2.95
01-076-042	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.10mm Size, 0.1220 Decimal Size, 18mm Flute Length, 49mm Overall Length	yes	$ 2.95
01-076-044	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.20mm Size, 0.1260 Decimal Size, 18mm Flute Length, 49mm Overall Length	yes	$ 2.95
01-076-046	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.30mm Size, 0.1299 Decimal Size, 18mm Flute Length, 49mm Overall Length	yes	$ 2.95
01-076-048	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.40mm Size, 0.13399 Decimal Size, 20mm Flute Length, 52mm Overall Length	yes	$ 2.95
01-076-050	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.50mm Size, 0.1378 Decimal Size, 20mm Flute Length, 52mm Overall Length	yes	$ 2.95
01-076-052	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.60mm Size, 0.1417 Decimal Size, 20mm Flute Length, 52mm Overall Length	yes	$ 3.95
01-076-054	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.70mm Size, 0.1457 Decimal Size, 20mm Flute Length, 52mm Overall Length	yes	$ 2.95
01-076-056	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.75mm Size, 0.1476 Decimal Size, 22mm Flute Length, 55mm Overall Length	yes	$ 3.95
01-076-058	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.80mm Size, 0.1496 Decimal Size, 22mm Flute Length, 55mm Overall Length	yes	$ 3.95
01-076-060	Precise Metric H.S.S. Screw Machine Length Stub Drill, 3.90mm Size, 0.1535 Decimal Size, 22mm Flute Length, 55mm Overall Length	yes	$ 3.95
01-076-062	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.00mm Size, 0.1575 Decimal Size, 22mm Flute Length, 55mm Overall Length	yes	$ 3.95
01-076-064	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.10mm Size, 0.1614 Decimal Size, 22mm Flute Length, 55mm Overall Length	yes	$ 3.95
01-076-066	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.20mm Size, 0.1654 Decimal Size, 22mm Flute Length, 55mm Overall Length	yes	$ 3.95
01-076-068	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.30mm Size, 0.1693 Decimal Size, 24mm Flute Length, 58mm Overall Length	yes	$ 3.95
01-076-070	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.40mm Size, 0.1732 Decimal Size, 24mm Flute Length, 58mm Overall Length	yes	$ 3.95
01-076-072	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.50mm Size, 0.1772 Decimal Size, 24mm Flute Length, 58mm Overall Length	yes	$ 3.95
01-076-074	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.60mm Size, 0.1811 Decimal Size, 24mm Flute Length, 58mm Overall Length	yes	$ 3.95
01-076-076	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.70mm Size, 0.1850 Decimal Size, 24mm Flute Length, 58mm Overall Length	yes	$ 3.95
01-076-078	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.75mm Size, 0.1870 Decimal Size, 26mm Flute Length, 62mm Overall Length	yes	$ 3.95
01-076-080	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.80mm Size, 0.1890 Decimal Size, 26mm Flute Length, 62mm Overall Length	yes	$ 3.95
01-076-082	Precise Metric H.S.S. Screw Machine Length Stub Drill, 4.90mm Size, 0.1929 Decimal Size, 26mm Flute Length, 62mm Overall Length	yes	$ 3.95
01-076-084	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.00mm Size, 0.1969 Decimal Size, 26mm Flute Length, 62mm Overall Length	yes	$ 3.95
01-076-086	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.10mm Size, 0.2008 Decimal Size, 26mm Flute Length, 62mm Overall Length	yes	$ 3.95
01-076-088	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.20mm Size, 0.2047 Decimal Size, 26mm Flute Length, 62mm Overall Length	yes	$ 4.95
01-076-090	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.30mm Size, 0.2087 Decimal Size, 26mm Flute Length, 62mm Overall Length	yes	$ 4.95
01-076-092	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.40mm Size, 0.2126 Decimal Size, 28mm Flute Length, 66mm Overall Length	yes	$ 4.95
01-076-094	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.50mm Size, 0.2165 Decimal Size, 28mm Flute Length, 66mm Overall Length	yes	$ 4.95
01-076-096	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.60mm Size, 0.2205 Decimal Size, 28mm Flute Length, 66mm Overall Length	yes	$ 4.95
01-076-098	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.70mm Size, 0.2244 Decimal Size, 28mm Flute Length, 66mm Overall Length	yes	$ 4.95
01-076-100	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.80mm Size, 0.2283 Decimal Size, 28mm Flute Length, 66mm Overall Length	yes	$ 4.95
01-076-102	Precise Metric H.S.S. Screw Machine Length Stub Drill, 5.90mm Size, 0.2323 Decimal Size, 28mm Flute Length, 66mm Overall Lengthq	yes	$ 4.95
01-076-104	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.00mm Size, 0.2362 Decimal Size, 28mm Flute Length, 66mm Overall Length	yes	$ 4.95
01-076-106	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.10mm Size, 0.2402 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 4.95
01-076-108	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.20mm Size, 0.2441 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 4.95
01-076-110	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.25mm Size, 0.2461 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 5.95
01-076-112	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.30mm Size, 0.2480 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 5.95
01-076-114	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.40mm Size, 0.2520 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 5.95
01-076-116	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.50mm Size, 0.2559 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 5.95
01-076-118	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.60mm Size, 0.2598 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 5.95
01-076-120	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.70mm Size, 0.2638 Decimal Size, 31mm Flute Length, 70mm Overall Length	yes	$ 5.95
01-076-122	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.80mm Size, 0.2677 Decimal Size, 34mm Flute Length, 74mm Overall Length	yes	$ 5.95
01-076-124	Precise Metric H.S.S. Screw Machine Length Stub Drill, 6.90mm Size, 0.2717 Decimal Size, 34mm Flute Length, 74mm Overall Length	yes	$ 6.95
01-076-126	Precise Metric H.S.S. Screw Machine Length Stub Drill, 7.00mm Size, 0.2756 Decimal Size, 34mm Flute Length, 74mm Overall Length	yes	$ 6.95
01-076-128	Precise Metric H.S.S. Screw Machine Length Stub Drill, 7.10mm Size, 0.2795 Decimal Size, 34mm Flute Length, 74mm Overall Length	yes	$ 5.95
01-076-130	Precise Metric H.S.S. Screw Machine Length Stub Drill, 7.20mm Size, 0.2835 Decimal Size, 34mm Flute Length, 74mm Overall Length	yes	$ 5.95
01-076-132	Precise Metric H.S.S. Screw Machine Length Stub Drill, 7.30mm Size, 0.2874 Decimal Size, 34mm Flute Length, 74mm Overall Length	yes	$ 5.95
01-076-136	Precise Metric H.S.S. Screw Machine Length Stub Drill, 7.50mm Size, 0.2953 Decimal Size, 34mm Flute Length, 74mm Overall Length	yes	$ 6.95
01-076-138	Precise Metric H.S.S. Screw Machine Length Stub Drill, 7.60mm Size, 0.2992 Decimal Size, 37mm Flute Length, 79mm Overall Length	yes	$ 7.95
