Precise Retention Knob Style 3, 45º Angle Thru Coolant ISO50A - 3900-5373
Brand: Precise- SKU:
- 3900-5373
- ID:
- 347785
$18.51
Precise Retention Knob Style 3, 45º Angle Thru Coolant ISO50A - 3900-5373
- Heat Treated alloy steel
- All dimensions in accordance to ISO/DIS7388/2-1984A specifications

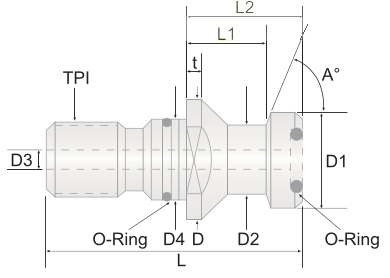

| Item No. | 3900-5375 |
| Thread T.P.I. | M24x3.0 |
| Knob Dia. D1 | 1.102"/28mm |
| Neck Dia. D2 | 0.827"/21mm |
| Hole Dia. D3 | 0.451"/11.45mm |
| Pilot Dia. D4 | 0.984"/25mm |
| Diameter D | 1.417"/36mm |
| OAL L | 2.913"/74mm |
| Shoulder L1 | 0.984"/25mm |
| Shoulder L2 | 1.575"/40mm |
For More Precise Retention Knobs - Style 3 Click Here
