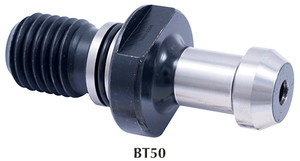

Precise Retention Knob Style 5, 60º Angle BT50 - 3900-5398

Brand: Precise

SKU:: 3900-5398

ID:: 347850

$19.23

Current Stock:

Adding to cart… The item has been added

Precise Retention Knob Style 5, 60º Angle BT50 - 3900-5398

Coolant Thru
Heat treated alloy steel.
BT All dimensions in accordance to ANSI specifications for CAT holders and MAS specifications for BT holders.

Item No.	3900-5398
Thread T.P.I.	M24x3.0
Knob Dia. D1	0.906"/23mm
Neck Dia. D2	0.669"/17mm
Hole Dia. D3	0.236"/6mm
Pilot Dia. D4	0.984"/25mm
Diameter D	1.496"/38mm
OAL L	3.346"/85mm
Shoulder L1	1.378"/35mm
Shoulder L2	3.937"/100mm

For More Precise Retention Knobs - Style 5 Click Here
