RapidAir 3/4" Fastpipe® Cooling Kit - F28072

RapidAir 3/4" Fastpipe® Cooling Kit - F28072

• Set up a compressed air cooling system.
• Easy to install, versatile solution to eliminate excess moisture in an air system
• Hot air flows into the cooling loop and travels a total distance of approximately 27 feet, cooling the air and causing water vapor to condense
• Rectangular construction allows for easy draining through the ball valves
• Inexpensive compared to the cost of a powered air dryer or after cooler
• Hot air exits the air compressor and is cooled thru 30 ft of aluminum piping, drain moisture at 4 locations.
• The Fastpipe rigid pipe is all aluminum and powder coated on the outside. No glue, soldering or crimping needed.
• Simply cut the pipe to length, insert in the fitting and tighten.

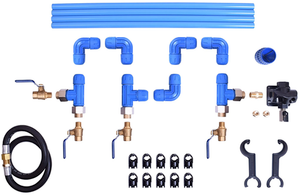

Kit contains 30 ft. pipe, 4 drain points, 5 elbows, 3 tee fittings, compressor jumper hose, wall clips, tools.
QTY: 4 F1863 3/4″ X 7’6″ PIPE
QTY: 5 F1003 3/4″ FASTPIPE ELBOWS
QTY: 3 F1009 3/4″ FASTPIPE REDUCING TEE x 1/2″ FNPT
QTY: 2 F3400 3/4″ FASTPIPE LARGE HEX NUT
QTY: 2 F3411 3/4″ FASTPIPE INSERT GASKET
QTY: 2 F3450 3/4″ FASTPIPE BRASS INSERT x 1/2″ FNPT
QTY: 4 K35050M 1/2″ NPT MALE X FEMALE BRASS BALL VALVE
QTY: 1 50616 1/2″ NPT BRASS HEX NIPPLE
QTY: 1 F2024 WALL OUTLET w 1/2″ FNPT INLET
QTY: 1 F0142 DEBURR TOOL
QTY: 2 F1020 3/4″ SPANNER WRENCH
QTY:1 F1022-10 3/4″ FASTPIPE WALL CLIPS (10 PACK)
QTY:1 F0213 1/2″ x 3FT COMPRESSOR JUMPER HOSE
