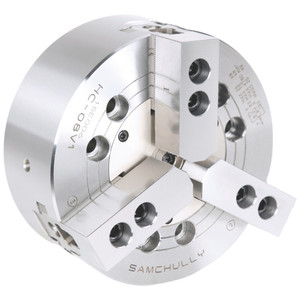

Samchully HC Series 3-Jaw, High-Speed, Closed-Center Power Chuck, 6" Size - HC-06V1
Brand: Samchully- SKU:
- HC-06V1
- ID:
- 880392
Samchully HC Series 3-Jaw, High-Speed, Closed-Center Power Chuck, 6" Size - HC-06V1
The HC Series Power Chuck is engineered for high-speed, closed-center clamping—making it ideal for vertical lathes and machining environments where chip and coolant intrusion must be minimized. With its sealed center design, this chuck prevents internal contamination, ensuring consistent clamping force and extended service life. Perfect for environments where cleanliness, reliability, and high RPM are critical, the HC Series is a trusted solution for precision turning operations.
Technical Features:
Designed with a closed-center body structure to prevent debris infiltration, the HC-06 Series offers a jaw stroke range of up to 8.5mm and a maximum gripping force of up to 52.5kN. Balanced for high-speed performance, it supports top RPM ratings while minimizing vibration. The chuck body is manufactured from high-grade alloy steel for strength and durability, and it's compatible with standard hydraulic cylinders for seamless integration into existing setups.
View the HC Series 4" to 12" Closed-Center Power Chucks Specifications
Specifications:
| SKU | HC-06V1 [M16 x 2.0] |
| Includes | Mounting Bolts; Soft Top Jaws; Master Jaws; T-Nuts; Handle |
| Kitagawa Equivalent | N-06 |
| Grip Dia. Max (mm) | 165 |
| Grip Dia. Min. (mm) | 19 |
| Jaw Stroke Dia. (mm) | 8.5 |
| Plunger Stroke (mm) | 18.5 |
| Max. Permissible Input Force [kN(kgf)] | 18(1835) |
| Max. Static Gripping Force [kN(kgf)] | 52.5(5353) |
| Max. R.P.M. | 5270 |
| Weight [kg] | 13 |
| Series | HC |
| Size | 6" |
| Includes | 3 Jaws |
| Jaws | 3 |
See all Samchully HC Series 3-Jaw, High-Speed, Closed-Center Power Chucks
