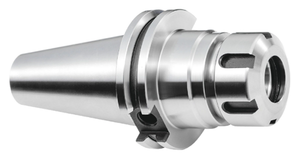

Sharktools CAT 40 ER-16 Collet Chuck, 0.02" - 0.406" Range - ST40ER16400B
Brand: Sharktools- SKU:
- 67-814-441
- ID:
- 359458
$128.00
Sharktools CAT 40 ER-16 Collet Chuck, 0.02" - 0.406" Range - ST40ER16400B
- Premium Balanced to G6.3 at 15,000 RPM to save spindle bearing life
- Taper-to-taper runout <0.0004".
- AD coolant thru the spindle.
- Hardened to 56-60 HRC.
- Taper shank ground to AT3 accuracy (or better).
- Taper manufactured in accordance with ANSI B5.50 / ISO 7388 specifications.
- CAT 40 Draw bar threads: 5/8"-11
Includes:
Stop screw.
| Projection | Max. Socket Depth | Nut Type |
| 4" | 1.28" | Hex |
For More Sharktools CAT 40 ER Collet Chucks Click Here
