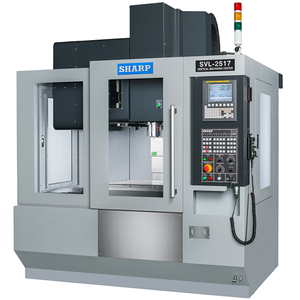

Sharp CNC Vertical Machining Center - SVL-2517SX-F

Sharp CNC Vertical Machining Center - SVL-2517SX-F

This is a compact workhorse with linear roller pack ways that has fast rapid traverse but still offers strong work table support for heavy cutting.

• FANUC Oi-MF, 8.4” LCD color screen
• Travel : X/Y/Z : 25.2” / 17” / 18” (SVL-2517SX-F), 25.2”
• Table: 27.5″ x 16.5″
• Spindle: 12k rpm, CAT 40 big plus, direct drive, 10/15 HP motor
• Linear roller pack ways
• ATC: Side mount 24 tools
• Position accuracy: X/Y/Z (+/- 0002″)
• Repeatability : X/Y/Z (+/- 00016″)
• Machine size without chip conveyor: W/D/H (79.53″/ 86.46″/ 100″)
• Coolant nozzle: 2, air blow nozzle: 1
• Coolant tank capacity: 42 gal
• Electrical: 220V/ 3 Ph/ 20 KVA

Specifications:

• X axis travel: 25.20"
• Y axis travel: 17"
• Z axis travel: 18.1"
• Spindle nose to table: 3.15-21.26"
• Spindle center to column: 19.29"
• Table area: 27.5 x 16.5"
• Max. workpiece weight: 660 lbs.
• T-Slot (Number x Width x Pitch): 5 x 0.7 x 3.14 in.
• Spindle taper: CAT-40 Big Plus
• Spindle speed: 12,000 rpm
• Spindle motor: cont./30 min: 10/15 HP Alpha Motor
• Torque 52 ft/lb (70 Nm) at 1500 rpm
• Transmission: Direct Coupling
• ATC type: Side Mount
• Tool capacity: 24
• Max. tool diameter: 3.94"
• Without adjacent tool: 5.9"
• Max. tool length: 9.8"
• Max. tool weight: 15.4 lbs.
• Tool change time (tool to tool): 2 sec
• Tool change time (chip to chip): 6 sec
• Method of tool selection: Random
• Rapid traverse: 0.04-1,417 in/min.
• Cutting feed rate: 0.04-393.7 in/min.
• Transmission: Direct Drive
• Positioning accuracy* 0.00016"
• Repeatability accuracy* 0.00012"
• Ballscrew diameter X/Y/Z: 1.26"
• X/Y/Z servo motors for Fanuc control: 1.6/1.6/2.4 HP
• Coolant tank capacity: 53 gal
• Number of Coolant Nozzles: 3
• Floor space (w/o chip conveyor): W: 79.53 in. x D: 86.46 in
• Height: 99.4"
• Weight: 8272 lbs.
• Operator door opening: 28.4"
• Electrical: 220V/3 Phase / 20 KVA / 60Hz
• Air: 6 CFM at 88 psi

Standard Accessories:

• 512 K memory, USB port, CF card, RS-232 I/F, embedded ethernet
• Rigid tapping
• Coolant gun, air gun
• LED work light
• Full enclosure
• Spindle air curtain
• Chip coolant flush
• 4 extra M code
• Removable hand wheel (MPG)
• Air reservoir tank with alarm
• Electric cabinet heat exchanger
• Spindle chille
