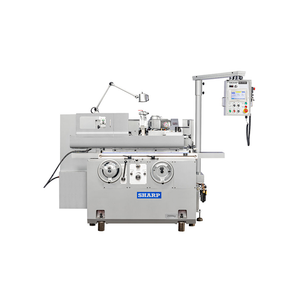

Sharp Industries Universal Cylindrical Grinder NC Servo-Driven Wheel Head - OD-816SE

Sharp Industries Universal Cylindrical Grinder NC Servo-Driven Wheel Head - OD-816SE

• Automatic Infeed Type
• Halogen work light
• Auto lubrication system
• Wheel flange (5″)
• 14″ x 1.5″ x 5″ grinding wheel w/ flange (Grinding Wheel Material: WA60L)
• Wheel extractor
• Carbide tip center (MT# 4) (2)
• Balancing arbor
• Diamond dresser with holder box w/ adjusting tools
• Wired 220V or 440V (needs transformer)
• Tailstock MT#3
• Semi-Sliding Splash Guard

Capacity:

• Distance Between Centers: 15.7"
• Swing Over Table: 7.87"
• Max Grinding Diameter: 7.09"
• Max Load Between Centers: 133 lbs.

Grinding Wheel:

• OD x Width x ID: 14 x 1.5 x 5 in.
• Min. Input Increment: 0.001mm
• Linear Velocity: 45m/s
• Internal Grinding: Manual Elevation
• Spindle Bearing: Special Completed Hydrostatic Bearing

Wheelhead:

• Swiveling Angle (R&L): fixed
• Infeed Travel: 6.3"
• Handfeed Travel: 6.3"
• Top Slide Travel: 7"
• Automatic Rapid Travel: 1.75"
• Auto Increment Infeed (SE only): 0.001 – 0.1"
• Handwheel per Graduation (dia.): 0.0002"
• Handwheel per Revolution (dia.): 0.1"

Workhead:

• Swiveling Angle (R&L): 30° ~ + 90°
• Center Taper: MT 4
• Spindle Speed (Variable): 10-300 rpm (Variable)
• Max. load of Spindle (tool holder included): 15 kgs (Max.Length: 100mm)
• Tailstock Stroke: 1"
• Center Taper: MT # 3
• Swiveling Angle (R&L): 0° ~ 10°
• Rapid Feed rate: 10 m/min
• Min. Input Increment: 0.001mm
• Table Lubrication: Hydraulic static Slideway Lubrication
• Spindle Speed: 14,000 or 25,000 rpm
• Grinding Bore Range: 0.95-2.75"
• Max Grinding Length: 2.75"
• Max Chucking Length: 10.8"
• Max Chucking Diameter: 4"
• Wheel Spindle Motor: 3 HP
• Workhead Motor: 0.5 HP
• Internal Grinding Motor, Coolant Pump, Coolant Pump: 0.25 HP
• Wheel Spindle Lubrication Pump: 0.25 HP
• Hydraulic Pump: 0.5 HP
• Wheel Spindle Bearing Lubricate: 7 L
• Lubrication Oil Tank: 46 L
