SOWA GS Tooling CAT50 Dual Contact Milling Chuck, GS 1-1/4", 0.187 - 1.250" Range, 1.25" Hole Dia. - 521-266
Brand: Sowa- SKU:
- 521-266
- ID:
- 310505
| Collet Series | GS 1-1/4" |
| Collet Range | 0.187 - 1.250" |
| Hole Diameter | 1.25" |
$493.56

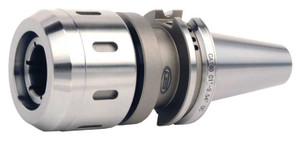

SOWA GS Tooling CAT50 Dual Contact Milling Chuck
GS 1-1/4", 0.187 - 1.250" Range, 1.25" Hole Dia.
521-266
FOR DUAL CONTACT SPINDLES
Features:
- Improves rigidity and reduces vibration allowing for increased feed rates and increased tool life
- DIN coolant option - standard
- Rough milling or "hogging" operations
- Improved tool life over regular end mill holders
- 360º gripping contact
- Extreme rigidity over taper collets
- 0.0002" TIR for maximum tool life and accuracy
Specifications:
| Item Number | 521-266 |
| Taper | CT50 |
| Collet Series | GS 1-1/4" |
| Collet Range | 0.187 - 1.250" |
| Hole Dia. | 1.25" |
| Gauge Length (L) | 4.14" |
| L1 | 4.73" |
| D | 2.88" |
| Tightening Torque | 60-80Nm |
