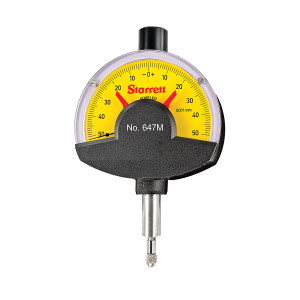

Starrett Dial Comparator, 0-0.1mm, EDP 00002 - 647M

Starrett Dial Comparator, 0-0.1mm, EDP 00002 - 647M

Dial Comparator Indicator, 0-0.1mm Range, 0-50-0 Balanced Dial, 0.001mm Grads, Range Per Rev, .375" Stem

The Starrett 647 Dial Comparator Indicators offer a high degree of security and precision. They are based on a solid and well thought-out construction They are manufactured by the most up-to-date methods.

Features

• Effective non-shock mechanism

• Pinions and shafts of the movement are jeweled

• After removal of the safety cap the adjustment screw on top of the case allows simple and safe zero setting of the instrument over the total measuring

• A safety cap prevents unintentional turning of the fine adjustment screws

• Stem and spindle are made of hardened stainless steel

• The measuring spindles are very sensitive on account of their accurate guides

• Additional over travel assists with the insertion of work pieces into the measuring device

• The clear scale is shadow free

• The red tolerance markers are easy to recognize and to set

• Furnished with flat back
• Download User Manual here

Specifications

• Graduations (mm): 0.001mm

• Total Range (mm): 0.1mm

• Dial Reading: 0-50-0

• Dial Color: Yellow

• Stem Diameter (in): .375"

• Accuracy (mm): DIN 879-1

See all Starrett 647 Dial Comparator Indicators
