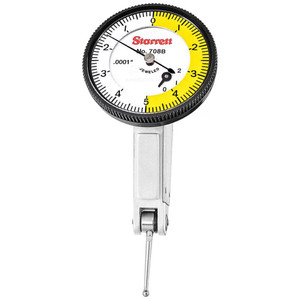

Starrett Dial Test Indicator with Dovetail Mount 708BZ #64213, 0.02" Range, 0-5-0 Dial Reading, 0.0001" Graduation, 1-3/8" Dial Diameter, White Dial - 11-890-1
Brand: Starrett- SKU:
- 11-890-1
- ID:
- 107078
| Range | 0.02" |
| Dial Reading | 0-5-0 |
| Graduation | 0.0001" |
| Dial Diameter | 1-3/8" |
| Dial Color | White |
$610.95
Starrett Dial Test Indicator with Dovetail Mount 708BZ #64213, 0.02" Range, 0-5-0 Dial Reading, 0.0001" Graduation, 1-3/8" Dial Diameter, White Dial
Manufacturer Part #: 64213
Horizontal Dial Test Indicator: 0.0200" Max, 0-5-0 Dial Reading
1-3/8" Dia, White Dial, 0.000100" Graduation, 0.0787" Ball
- Range (in): .020"
- Graduations (in): .0001"
- Dial Reading: 0-5-0
- Attachments: Without Attachments
- Contact Point Ball Diameter (in): .078" (2mm)
- Contact Point Length (in): 13/16"
- Contact Point Length (mm): 20mm
- Dial Color: White
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Three dovetail positioning mounts work with existing test indicator accessories
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Revolution count hand for easy reading
- Meet or exceed ISO accuracy specification
- Inch reading indicators are available with easy-to-read, shaded white, red, or black dials – millimeter reading indicators with yellow dials
- Angled head for better reading position
- Narrow body for in reach ability
- Satin chrome finish for durability
- Large 1-3/8" (35mm) dial diameter
- Include long carbide contacts 13/16" (20mm)
Specifications:
| Maximum Measurement (Decimal Inch) | 0.02 |
| Dial Reading | 0-5-0 |
| Indicator Style | Horizontal |
| Bearing Type | Jeweled |
| Dial Diameter (Inch) | 1-3/8 |
| Dial Color | White |
| Dial Graduation (Decimal Inch) | 0.0001 |
| Standards | ISO; California PROP 65 |
| Mount Type | Dovetail |
| Attachments | No |
| Number of Contact Points Included | 1 |
| Features | Precision Gear-Driven Design; Jeweled Movement; Satin Chrome Finish; Dovetail Mount; Adjustable Contact; Angled Head; Durable; Replaceable Contact; Narrow Body; Revolution Count Hand |
| Contact Point Length (mm) | 20.64 |
| Contact Point Length (Inch) | 13/16 |
| Ball Diameter (mm) | 2 |
| Ball Diameter (Decimal Inch) | 0.0787 |
| Range Per Revolution (Decimal Inch) | 0.02 |
| Style | Horizontal |
| Contents | 13/16 in (20 mm) Long Carbide Contact |
| UNSPSC Code | 41111630 |
| Country of Origin | UNITED STATES |
