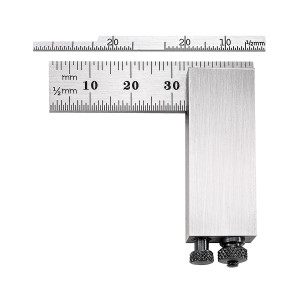

Starrett Millimeter Reading Diemakers Square, 50mm, EDP 52348 - 453MC
The sliding blades of this tool and diemakers square can be adjusted at an angle (up to approximately 10 Deg) with the beam for measuring the clearance in dies. 50mm with Metric Standard/Narrow Blades.
Features
- With Standard, Narrow Blades
- The millimeter reading blade is graduated in millimeters and 1/2 millimeters
- Graduated blade, 32nds of an inch on one side, and 64ths on other. It is 5/32"wide over a length of
- 1-5/8" and cut away at one end to a width of 3/32"
- The blade can be held in position by tightening the clamping screw
- Head and blades are hardened and ground
Specifications
- Made in America: Yes
- Type: Diemakers’ Square with angular and sliding blade adjustment
- Blade Length (mm): 50mm
- Graduations: mm - 1/2mm
- Material: Steel
- Includes: With Standard, Narrow Blades
