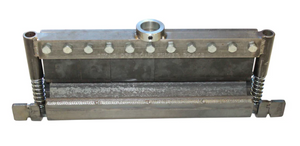

SWAG Off Road | WELDED 20 TON Finger Brake Heavy Duty DIY Builder Kit - HDFBWELD

SWAG Off Road | WELDED 20 TON Finger Brake Heavy Duty DIY Builder Kit - HDFBWELD

Built for serious fabrication projects — precision, strength, and versatility in one kit.

The Heavy Duty 20 TON Finger Brake Press DIY Builder Kit is designed to fit the Harbor Freight 20-ton hydraulic press (Item #32879, #60603, and #70603). This kit ships unassembled, giving you the flexibility to complete the final welding and assembly yourself.

It includes an adjustable back stop for accurate, repeatable bends and a top clamping bar machined from 4140 steel with five removable segmented sections (1", 2", 3", 4", and 9.5"). These blocks can be rearranged to bend restricted areas or partially formed pieces with ease.

Heavy Duty Construction

• Bottom formed channel made from 3/8" thick high-strength steel.
• Bottom “V” die measures 3.75" wide x 1/4" thick, allowing easier bending of thicker material.
• Same quality components as the standard press brake kit, but reinforced for heavy-duty performance.

Specifications

• Max Bending Radius: 110°
• Max Bending Capacity: 5/8" plate
• Max Bending Width: 19.25"
• Total Width: 22.125"

Bending Capacity (Mild Steel):

• 19" at 3/16" or thinner
• 15" at 1/4"
• 13" at 5/16"
• 11" at 3/8"
• 6" at 1/2"
• 3" at 5/8"

Assembly Requirements

Tools needed: welder, grinder, level, and small square.

Important Notes

• Shop press and bottle jack are not included.
• Optional centering tabs are provided but not attached on the fully welded kit.
• Please provide a valid shipping address (UPS/FedEx deliverable).

This heavy-duty DIY press brake kit is a perfect addition to your workshop and pairs seamlessly with our arbor press plates.
