Tap Associates Inc. Tap Extension Set of 9, #0 to 1/2", 6" Length - 74-755-0

Brand:   Tap Associates Inc.
SKU:
74-755-0
ID:
170816
Model
OAL 6"
Tap Size #0 to 1/2"
Max Extension Dia A
Max Tap Shank B
Max Tap Square C
$694.67
Current Stock:
Adding to cart… The item has been added

Tap Associates Inc.

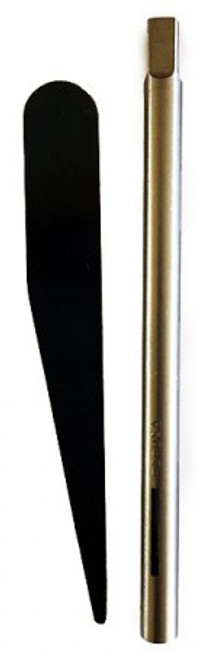

Tap Associates Inc. Tap Extension Set of 9
#0 to 1/2", 6" Length

For machine or hand tapping applications


Features:

  • No set screws, collars, or collets required!
  • Minimal shank diameters for close quarter tapping
  • Patented, for use with all standard shank machine and hand taps

Specifications:

Item Number 74-781-6 74-782-4 74-783-2 74-784-0 74-785-7
Model 1016 1026 1036 1046 1056
Tap Size #0 - 6 #8 #10 #12 1/4"
Overall Length 6" 6" 6" 6" 6"
Maximum Extension Diameter (A) 0.250" 0.250" 0.250" 0.312" 0.375"
Maximum Tap Shank Accepted (B) 0.141" 0.168" 0.194" 0.220" 0.255"
Maximum Tap Square Accepted (C) 0.110" 0.131" 0.152" 0.165" 0.191"
Length of Small Shank of Extension (D) - - - 1.500" 1.500"
Diameter of Small Shank of Extension (E) - - - 0.220" 0.255"
Square Shank of Extension (F) 0.191" 0.191" 0.191" 0.165" 0.191"



Item Number 74-786-5 74-787-3 74-788-1 74-789-9
Model 1066 1076 1086 1096
Tap Size 5/16" 3/8" 7/16" 1/2"
Overall Length 6" 6" 6" 6"
Maximum Extension Diameter (A) 0.437" 0.500" 0.500" 0.500"
Maximum Tap Shank Accepted (B) 0.318" 0.381" 0.323" 0.367"
Maximum Tap Square Accepted (C) 0.238" 0.286" 0.242" 0.275"
Length of Small Shank of Extension (D) 1.500" 1.500" 1.500" 1.500"
Diameter of Small Shank of Extension (E) 0.318" 0.381" 0.323" 0.367"
Square Shank of Extension (F) 0.238" 0.286" 0.242" 0.275"



See all Tap Associates Inc. Tap Extensions
