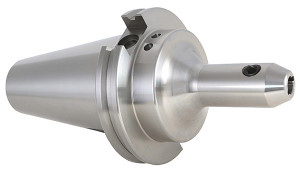

Techniks V Flange CAT 40 & 50 CNC End Mill Holders
- High precision bore (H5) is best in the industry.
- Balanced to 15,000 RPM to save spindle bearing life.
- Through Coolant: No
- Drawbar Thread 5/8"-11
| Item No. | Projection | Head Diameter |
| 67-804-050 | 2.37" | 0.69" |
| 67-804-051 | 2.5" | 0.69" |
| 67-804-052 | 2.5" | 0.78" |
| 67-804-053 | 3" | 0.78" |
| 67-804-054 | 3" | 0.88" |
| 67-804-055 | 3" | 1" |
| 67-804-056 | 5" | 1" |
| 67-804-057 | 3" | 1.25" |
| 67-804-058 | 4.63" | 1.25" |
| 67-804-059 | 3" | 1.5" |
| 67-804-060 | 3.5" | 1.75" |
| 67-804-061 | 4" | 2" |
| 67-804-062 | 6" | 2" |
| 67-804-063 | 4.6" | 2.5" |
| 67-804-064 | 4.5" | 2.5" |
| 67-804-065 | 4" | 0.78" |
| 67-804-066 | 4" | 0.88" |
| 67-804-067 | 4" | 1" |
| 67-804-068 | 4" | 1.25" |
| 67-804-069 | 4" | 1.5" |
| 67-804-070 | 4" | 1.75" |
| 67-804-071 | 4" | 2" |
| 67-804-072 | 4.6" | 2.5" |
| 67-804-073 | 4.6" | 2.5" |
